The REC33A expands the range of any standard 802.11a/b/g/n/ac Wi-Fi network by repeating the signal (2.4GHz and 5GHz) from a Wi-Fi router and redistributing it in a new, extended location. The REC33A is equipped with a total of twelve amplifiers, including six 2.4/5GHz amplifiers and six low noise amplifiers. The amplifiers combined with a high gain external antenna and two internal high gain antennas provide up to 10,000 sq ft of additional Wi-Fi coverage. The Range Extender features AC1750 Wi-Fi speeds to provide enough bandwidth for the most demanding networks. It is built with one gigabit wired port for connecting and bridging an additional network device, such as a PC or TV, to your Wi-Fi network. The REC33A works with all brands of standard single or dual band Wi-Fi routers and service provider gateways. Unleash your iPads, tablets and smartphones with the most powerful, fastest, plug-in, universal Wi-Fi range extender available.
Long Range Wi-Fi Extend the range of any single or dual band Wi-Fi router by up to 10,000 sq ft*
Eliminate Wi-Fi Dead Spots Achieve maximum range with 12 high power amplifiers and 3 high gain antennas
Blazing-Fast AC1750 Wi-Fi Supports next-gen AC1750 Wi-Fi for 450Mbps on 2.4GHz and 1300Mbps on 5GHz
Simultaneous Dual Band Wi-Fi Repeat both 2.4GHz and 5GHz signals simultaneously for maximum bandwidth
BoostBand™ Technology Streamline Wi-Fi traffic and increase speeds by up to 2X*
Guest Networks & User Access Create up to 8 networks for guests and restrict access to specific users
Wi-Fi Coverage Control Adjust the distance of your wireless network
AIRPLAY®, AIRPRINT™ & Home Sharing Works with all Apple networking features
Gigabit Network Bridge Connect one additional wired device, like a Smart TV, at gigabit speeds
TECHNICAL SPECIFICATIONS
Wireless Standard: 802.11a/b/g/n/ac
Frequency Band: 2.4GHz / 5GHz
Wireless Speed: AC1750
Security: WEP, WPA, WPA2, WPA Mixed, WPS
User Access Controls
Adjustable Wireless Coverage
Amplifiers: 3 x 2.4GHz Amplifiers, 3 x 5GHz Amplifiers, 6 x Low Noise Amplifiers
Antennas: 1 x Detachable High Gain Dual Band Antenna, 2 x Internal High Gain Antennas

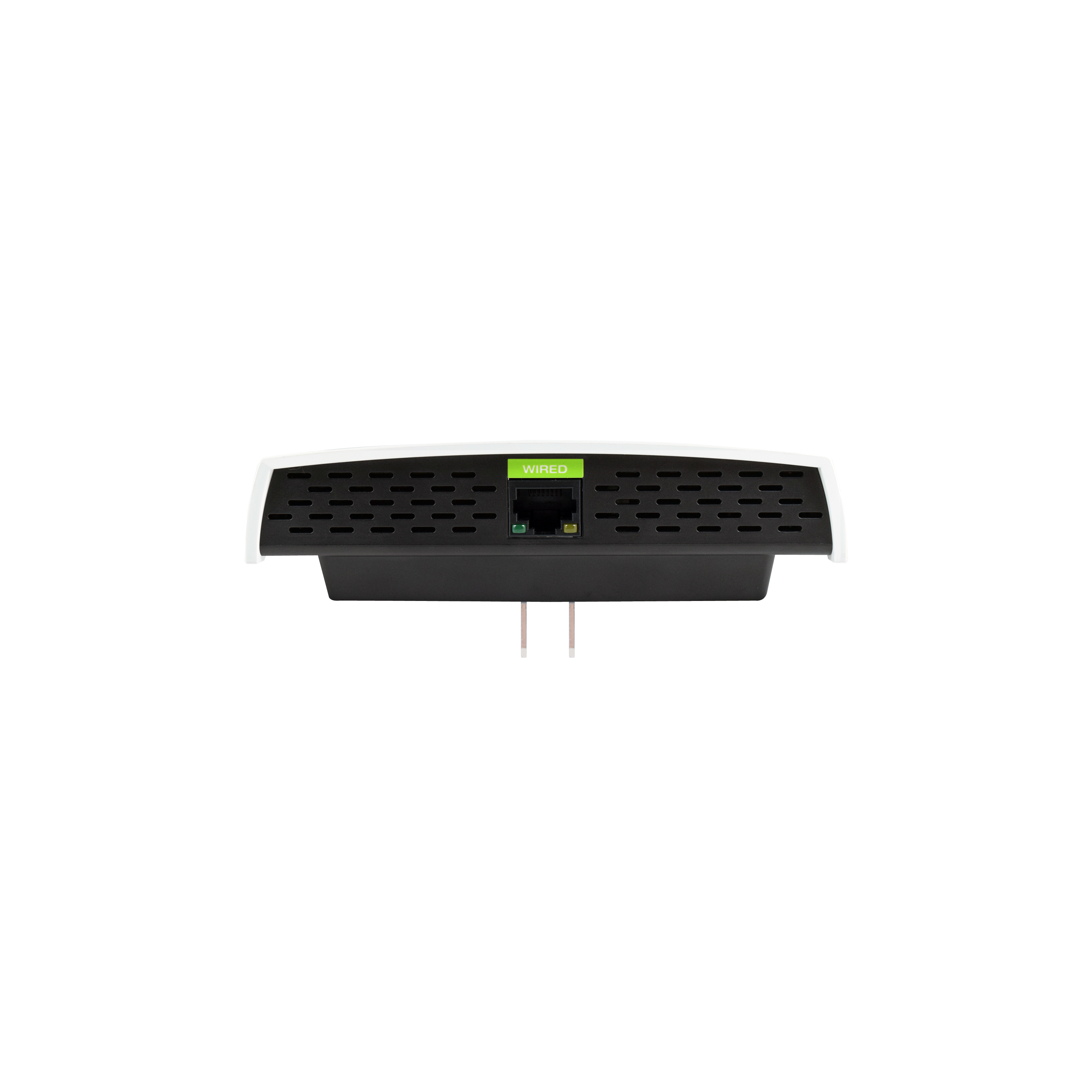

Port: 1 x RJ-45 Gigabit Port (LAN)
PACKAGE CONTENTS
High Power AC1750 Plug-In Wi-Fi Range Extender
Detachable High Gain Dual Band Antennas
Setup Guide
CD: User’s Guide & Installation Video
SYSTEM REQUIREMENTS
Wireless 802.11a/b/g/n or ac 2.4GHz or 5GHz Network
Computer, Tablet or Smartphone with Wi-Fi access and a web browser
Make sure your computer is connected to the Range Extender’s Wi-Fi network: Amped_REC33A_2.4 or Amped_REC33A_5.0
Try to use a different web browser. We recommend the Google Chrome web browser.
Try to open your web browser to the default IP address by putting this number into your web browser instead: 192.168.1.240
Power off (unplug from the power outlet) the Range Extender and power it back on. Try again.
Reset your Range Extender to default settings by holding the Reset Button (located on the top panel) for ten (10) seconds and try again.
If steps (a) thru (e) fail, disconnect your PC from all Wi-Fi networks. Attach an Ethernet cable between the Range Extender and your PC. Try to access http://setup.ampedwireless.com again.
Check that your wireless adapter supports WPA2 or WPA wireless security. If it does not then you will need to change the wireless security on the Range Extender. Go to the Web Menu, select Wireless Settings and then Wireless Security. Select the Extended Network from the drop down menu and either disable security or downgrade the security to WEP. Try connecting again.
The connection to the Home Network may be down. Use an Ethernet cable and connect directly to the Range Extender. Access http://setup.ampedwireless.com and run through the Setup Wizard again. After you have successfully reset the Home Network connection, try connecting wirelessly again.
Connect to your Range Extender and try to access http://setup.ampedwireless.com using your web browser.
If you are advanced in networking troubleshooting, log onto your home router’s web interface. Look for the DHCP client list and try to find the IP address of your Range Extender assigned by your home router. Once you have it, connect to the Range Extender using an Ethernet cable. Open your web browser and enter the IP address into the address bar.
Reset the Range Extender back to default settings and try the Setup Wizard again. To reset the Range Extender back to default settings, push the Reset Button (on the top panel) down for five (5) to ten (10) seconds then let go. After the Range Extender has fully reset, use an Ethernet cable and connect to the Range Extender. Login to the Web Menu at http://setup.ampedwireless.com and run through the Wizard.
Your Home Network may be secured. Double check that you have the correct security key to connect to the Home Network.
Your Range Extender may be located too far from your Home Network. Run through the Setup Wizard again. On the SCAN page, your Home Network should show a signal strength of 70% or greater. If it does not, move the Range Extender closer to your Home Network and try again.
If you are connecting to a dual band router, both networks (2.4GHz and 5.0GHz) should have a signal strength of 70% or greater.
Check that the antenna is connected securely to the antenna connector.
Check to see that your Home Network router’s DHCP server is enabled. The Range Extender needs to obtain an IP from your Home Network router.
The Range Extender may be out of range. Move the Range Extender closer towards the wireless router and try the Setup Wizard again from the Web Menu. It is recommended that your Home Network shows a signal strength of 70% or greater in the Setup Wizard SCAN results.
Go to the Wireless Settings tab in the web menu and access the Wireless Coverage Controls for your specific wireless network (2.4GHz or 5.0GHz). Make sure the setting is at 100% and try again.
Make sure that your Home Network’s wireless SSID is broadcasting and not hidden. If your Home Network SSID is hidden, you will need to manually setup the Range Extender through the Wireless Settings > Home Network Settings menu.
The Range Extender should automatically heal itself and reconnect to your wireless network. However, in the event that it does not and you are not able to access the Internet or your home network please try the following options:
Reboot the Range Extender, wait 3 minutes for the Range Extender to reconnect to your network and try to access the Internet.
The connection to your Home Network may have been dropped or the router settings may have changed. Changes to the router could be a result of several events, such as a power outage. When this occurs, connect to the Range Extender and access the setup menu using the web address: http://setup.ampedwireless.com. Run the Setup Wizard to reconnect the Range Extender to your network.
The Range Extender may be too far from your home router and not maintaining a signal strength of above 70%. Check the signal strength between the router and the Range Extender through the web menu (left side): More Settings > Management > Device Status. The Signal Strength readout will be under the Home Wireless Network Settings section. This Signal Strength must be above 70%. If it is below, move the Range Extender closer to your router, or reposition the Range Extender.
Check that the antenna is connected securely to the antenna connector.
Rescan for another network by accessing http://setup.ampedwireless.com to connect to and repeat or you may try to fix the issues with your Home Network and your home wireless router.
Check to see that your home wireless router settings have not changed. Any changes to the SSID, security, or channel number from the original settings will disconnect the Range Extender’s connection to the home network To solve this simply run the Setup Wizard again from the web menu and reconfigure your Home Network connection. You can also set a static channel number on your router to prevent this from happening again in the future.
If you cannot access the setup menu, check to see that your Range Extender is still on. Reboot the Range Extender by unplugging the power adapter and plugging it back in. Check to see if your connection has been reestablished by viewing a website. If you do not have a connection, logon to http://setup.ampedwireless.com and configure a new Home Network connection.
Check to see that your home wireless router is still on. If it has been turned off please turn it back on. The Range Extender should automatically reconnect to your Home Network within 10 minutes.
The Range Extender will repeat the 2.4GHz signal and the 5.0GHz signal from your router simultaneously. Both wireless networks must have a signal strength of 70% or greater with the Range Extender for a reliable connection. Make sure that your dual band router is close enough to the Range Extender to receive a strong signal.
Check to make sure that you have the correct security key for both the 2.4GHz and 5.0GHz network of your dual band router. These keys may sometimes be different from each other.
Check that the antenna is connected securely to the antenna connector.
Ensure that your dual band router does not have any security features enabled, such as MAC address filtering. If it does, disable it and try again.
The Home Network itself may not have Internet access. Check to see that you have internet access by connecting directly to the Home Network first. If you are able to go online then this is not a problem. If you cannot go online, then the Home Network’s Internet connection must first be resolved.
You may have a DNS issue and the Range Extender is not obtaining the IP settings from your Home Network. Try to reboot the Range Extender. If that fails, then reboot the Home Router to see if that fixes it.
There may be an IP conflict with your Home Network and your Extended Network. Try to adjust the IP Settings of your Extended Network using IP values that are different from your Home Network.
Power on and off the Range Extender and try again.
The connection to the Home Network may be down. Use an Ethernet cable and connect directly to the Range Extender. Access http://setup.ampedwireless.com and run through the Setup Wizard again. After you have successfully reset the Home Network connection, try connecting wirelessly again.
You may be too far away from your Home Network. The closer the Range Extender is to your Home Network, the better its connection will be. The Range Extender must have a strong signal in order to repeat the signal with fast speeds and further range. Move the Range Extender closer to your Home Network and try again.
Check that the antenna is connected securely to the antenna connector.
You may be downloading from the Internet and not within your Home Network or Extended Network. Files transferred through the Internet are limited by your ISP speed and the data download speeds from the website that you are downloading from.
Your computer may be using an older Wi-Fi adapter with lower speed limits and range capabilities (802.11b/g/n).
To achieve 802.11ac Wi-Fi speeds for your extended network, it is necessary to extend an 802.11ac Wi-Fi router. Check that your home router is an 802.11ac router. Extending a router with slower Wi-Fi speeds, such as 802.11b/g/n will result in slower Wi-Fi speeds for your extended network.
The Wired Port Routing on the Range Extender may not be defined correctly. While connected to the Range Extender, open your web browser and access http://setup.ampedwireless.com. From the web menu, go to More Settings > Network Settings > Wired Port Configuration. Check that the wired port is routed through an active Home Network connection. If the Range Extender is connected to a 2.4GHz network only, adjust the routing so that all wired ports traffic routes through the 2.4GHz Home Network.
Please check that the Range Extender is connected to a Home Network or router. The Signal Strength LED will not be on if there is no connection to a Home Network.
The connection to your Home Network may have disconnected. Please check your connection by accessing the web menu dashboard and reconfigure, if necessary.
Step back at least 10 feet from the Range Extender and check your signal again. The Range Extender emits high power, long range Wi-Fi signals that may confuse your wireless adapter signal reading at close range. The speed and signal are at 100%, however your readout may not be displaying the data correctly.
Check that the antenna is connected securely to the antenna connector.
The wireless channel that your network is running on may be congested. Change the wireless channel on your home Router and reconnect the Range Extender.
Check to see that your wireless output settings are at 100%. Go to the Web Menu, Wireless Settings and check the Advanced Settings. Make sure the output power is at 100%.
Your Range Extender may be installed in a poor location. Avoid setting up your Range Extender in areas with high interference, such as, near fridges, microwaves, metallic objects and low surfaces. Install the Range Extender in a higher location if possible.
Check the connections of the Antennas to the Range Extender. Tighten them if necessary.
Adjust the Antenna of the Range Extender in different angles.
The wireless channel that your network is using may be congested. Change the channel for your router’s 2.4GHz network or 5.0GHz network. The Range Extender should automatically reconnect to your networks new settings, however if it does not, simply reconfigure the Range Extender to your network.
The network adapter that you are using may have poor range, older technology with slower speeds or may need a driver update.
Your computer may be using an older Wi-Fi adapter with lower speed limits and range capabilities (802.11b/g/n).
To achieve 802.11ac Wi-Fi speeds for your extended network, it is necessary to extend an 802.11ac Wi-Fi router. Check that your home router is an 802.11ac router. Extending a router with slower Wi-Fi speeds, such as 802.11b/g/n will result in slower Wi-Fi speeds for your extended network.
The Range Extender supports WPS connections, however, some companies may use proprietary code for their own push button configurations. Try connecting using the Windows wireless utility or Mac wireless utility instead.
Long Range Wi-Fi (Up to 10,000 sq ft) Expand the range of your existing home or office single band or dual band wireless network by repeating the existing Wi-Fi signal. Six 2.4/5GHz amplifiers, six low noise amplifiers, and three high gain dual band antennas (two internal, one external) provide unprecedented Wi-Fi power and up to 10,000 sq ft of Wi-Fi coverage.
Blazing-Fast AC1750 Wi-Fi Speeds Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to six times faster than 802.11n. Making it an ideal extender for buffer and lag-free 4K and HD video streaming onto multiple devices at once. AC1750 Wi-Fi speeds provide up to 450Mbps 2.4GHz connections and up to 1300Mbps 5GHz connections, simultaneously.
Penetrate Walls & Eliminate Dead Spots Bring more range to your network with High Power Amplifiers and High Gain Antennas that provide powerful Wi-Fi coverage for hard-to-reach areas in your home or office.
BoostBand™ Technology Maximizes Speed Features exclusive technology that increases overall speed and performance by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and the Range Extender. Stream HD media without buffering, transfer large data files faster and play your games without lag.

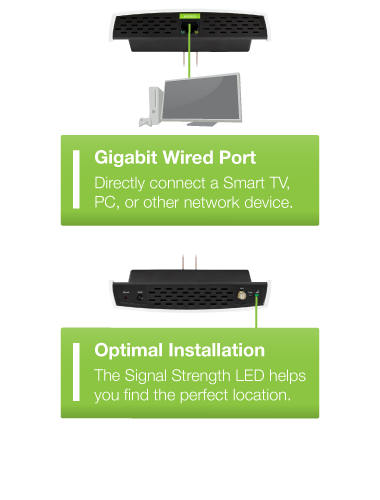

Network Bridging with Included Gigabit Wired Port Connect a wired PC, server, printer, or A/V device, such as a smart television, Blu-ray™ player, or game console at gigabit speeds with the included wired network port.
Smart Security Features You're in control! Smart security features allow you to restrict access to specific users, set a daily time schedule for when the network is available and control how far your extended wireless network coverage reaches through wireless output power adjustments. The Range Extender also supports secure push button setup for WPS enabled devices.

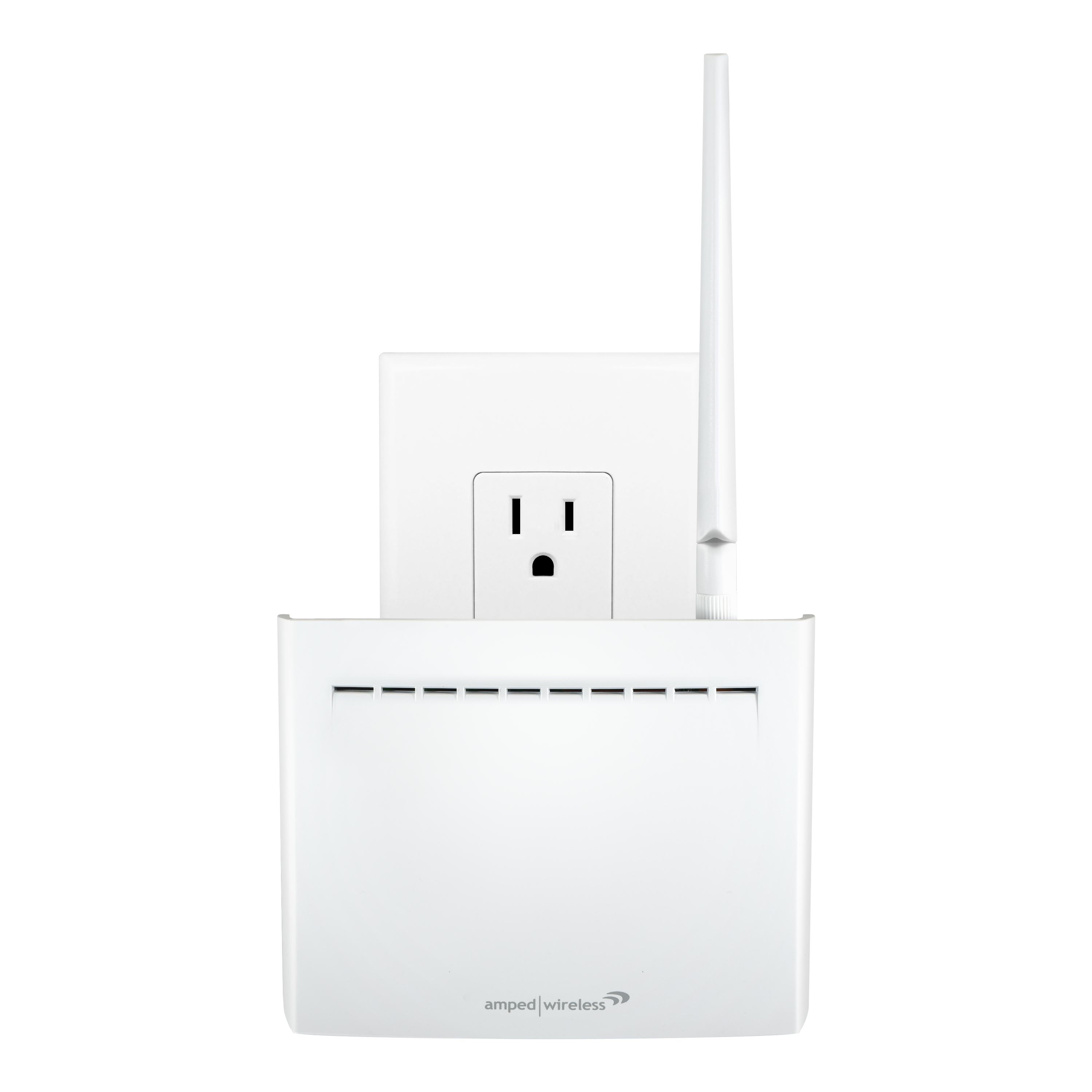

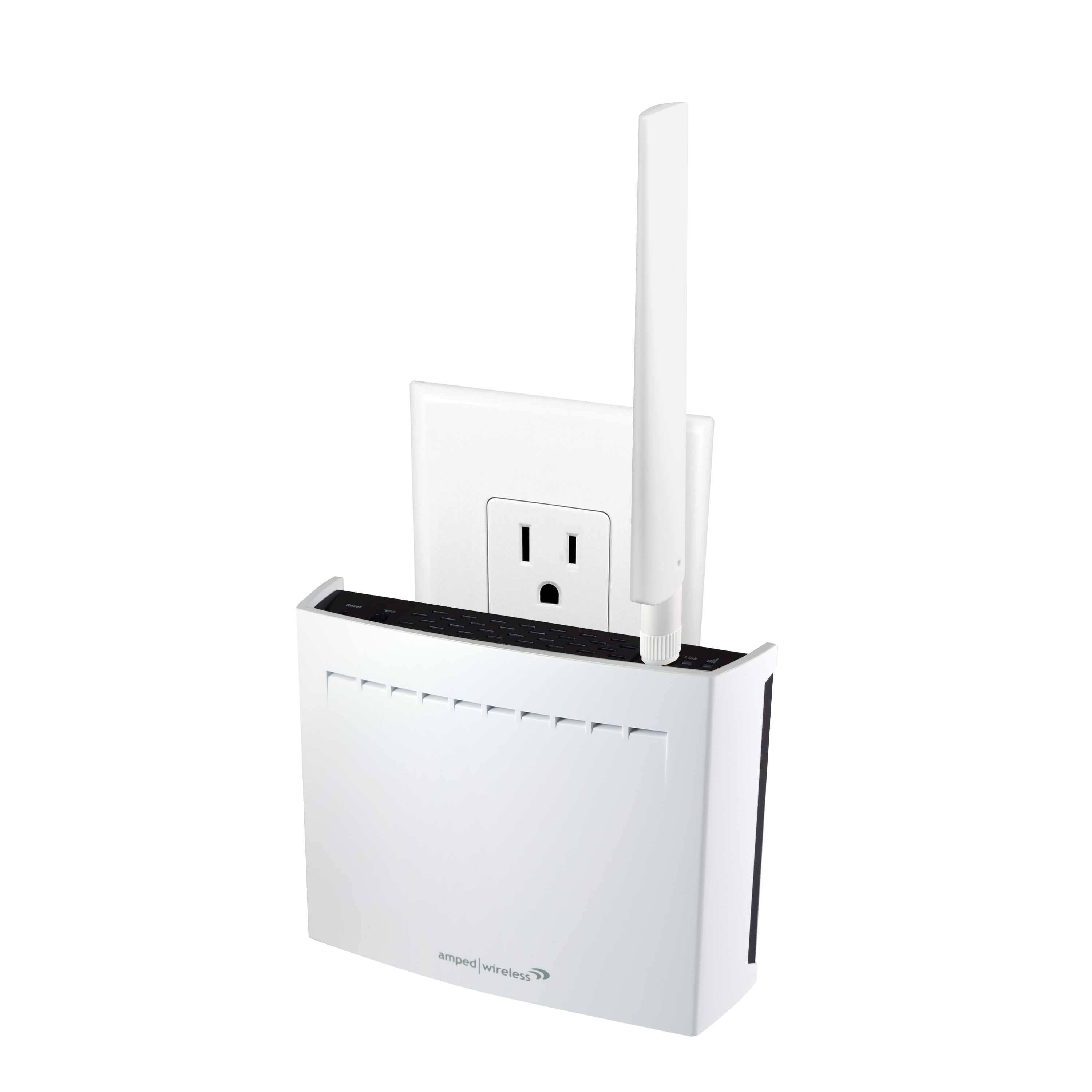

Elegant, Plug-In Design With the small design of the Range Extender you can discreetly place it in any room in your home or office without taking up shelf or wall space.
AirPlay®, AirPrint™, & Home Sharing Works with all Apple networking features for use with your iPads, iPhones, AirPlay speakers, AirPrint printers and more.
Universal Compatibility The Range Extender works with all brands of standard single band (2.4GHz) or dual band (2.4GHz and 5GHz) wireless routers and service provider gateways. The REC33A simultaneously extends both 2.4 and 5GHz networks to deliver maximum wireless speed and bandwidth.*
Create Guest Networks Add up to eight additional wireless networks for other rooms or offices. Each network can be customized with unique passwords and bandwidth restrictions for guests.
Simple Setup The Setup Wizard connects the Range Extender to your home or office Wi-Fi network in minutes. Simply connect your PC, Smartphone, or tablet to the Range Extender's Wi-Fi network, enter the setup URL, scan for your wireless network, select it and you're done!
Easy Optimal Placement: Signal Strength LED The Signal Strength LED gives you instant feedback on the connection between the Range Extender and your Home Network. Green, yellow and red lights atop the device convey whether the Extender is in the optimal, moderately optimal or poor installation location.

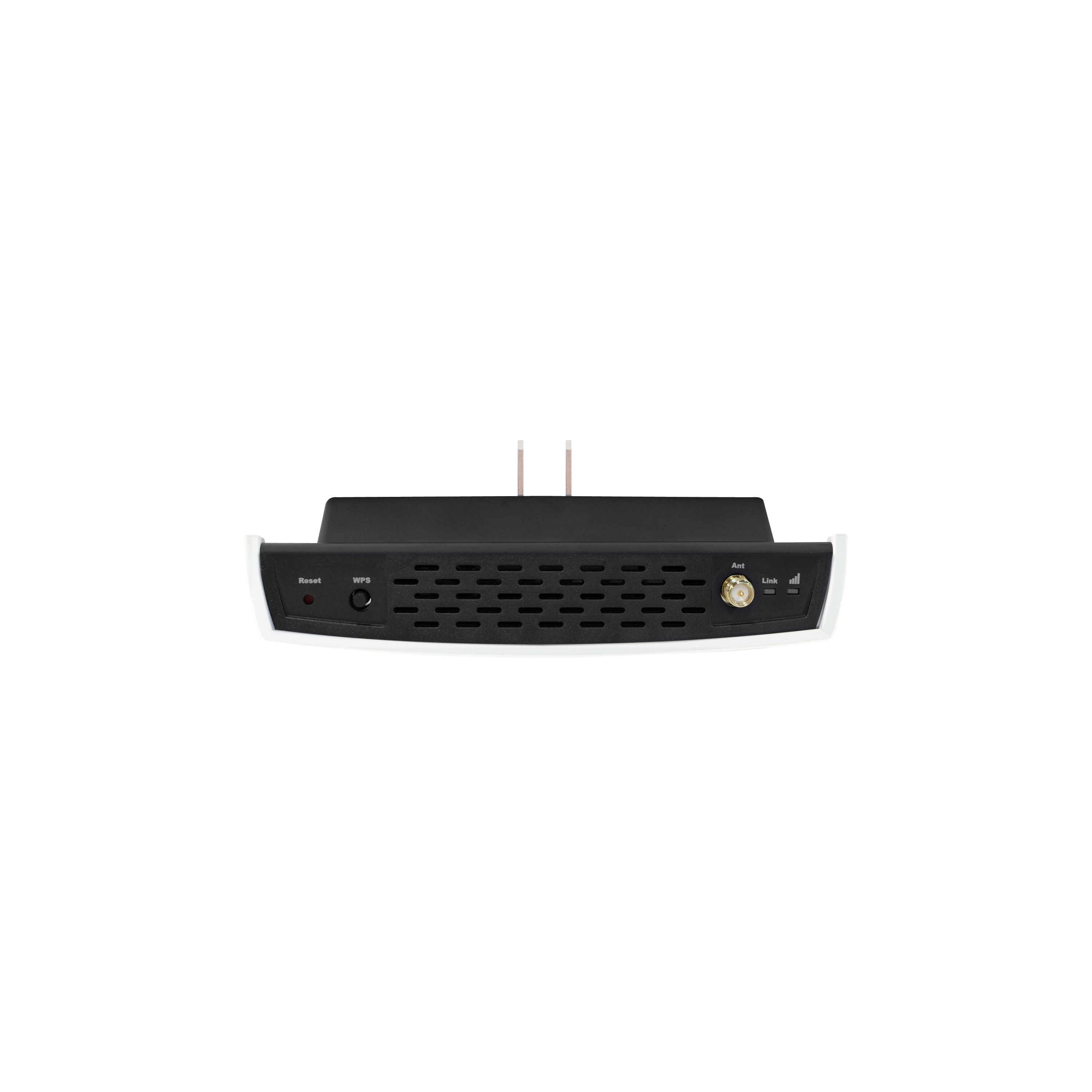

Connectors & Ports
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. 802.11ac wireless signal speeds achieved when connecting to other 802.11ac capable Wi-Fi devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.
AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Extend the range of any Wi-Fi network at blazing-fast speeds*
