High Power 700mW AC1200 Wi-Fi Range Extender REA20

High Power 700mW AC1200 Wi-Fi Range Extender REA20

REA20

Special Price $44.99

Regular Price: $119.99

Extend the range of any Wi-Fi network (2.4 and/or 5.0GHz)
by up to 10,000 sq ft*

  • Extends Wi-Fi coverage throughout large homes, backyards and offices to use your iPad, smartphone or laptop freely
  • Next generation, ultra-fast AC1200 Wi-Fi speeds provide fast HD streaming and lag-free gaming
  • Ten high power amplifiers and three high gain antennas deliver industry-leading Wi-Fi coverage
  • Advanced 2-Stage amplifiers use double amplification to achieve maximum range
  • Features BoostBand™ Technology to increase overall speed by streamlining Wi-Fi traffic
  • Features a powerful processor, five gigabit wired ports and a USB storage port for sharing files


Extend the range of your wireless network

Browse the selections below to view support materials and
troubleshooting tips. FAQs provide you with answers to frequently
asked questions. The Download section provides you with firmware
upgrades or device drivers and other related software. To view the
User's Guide for your product check out the Documentation section.
If you are having problems finding what you need, contact us.


Description
The Amped Wireless High Power 700mW Dual Band AC Wi-Fi Range Extender expands the range of any standard 802.11a/b/g/n/ac Wi-Fi network by repeating the signal (2.4GHz and 5.0GHz) from a Wi-Fi router and redistributing it in a new "extended" location. The flagship Range Extender provides industry leading Wi-Fi coverage coupled with ultra-fast AC1200 Wi-Fi speeds. The REA20 is equipped with a total of ten amplifiers, two 2.4GHz amplifiers, four 5.0GHz amplifiers, four low noise amplifiers, and three high gain antennas to provide high performance extended Wi-Fi coverage. It is the first Extender to feature double amplification with advanced 2-stage 5GHz amplifiers that ensure the longest range and extended coverage. The REA20 features 5 gigabit ports that allow additional networking devices, such as PCs and network switches to be connected at blazing fast speeds. The 802.11ac Wi-Fi Range Extender works with all brands of single band or dual band Wi-Fi routers and service provider gateways. Unleash your iPads, Android tablets, smartphones and e-readers with the most powerful, fastest, universal Wi-Fi range extender available.


KEY FEATURES

  • Industry Leading Extended Dual Band Wi-Fi Coverage
    Expand the range of your existing home/office single band or dual band wireless network by repeating the existing Wi-Fi signal. Two 2.4GHz amplifiers, four 5.0GHz 2-Stage amplifiers, four low noise amplifiers and three high gain antennas provide industry leading Wi-Fi power and extended coverage.
  • Ultra-Fast AC Wi-Fi Technology
    Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to three times faster than 802.11n. Great for streaming HD video to multiple devices simultaneously. AC1200 Wi-Fi speeds provide up to 300Mbps 2.4GHz 802.11n connections and up to 867Mbps 5.0GHz 802.11ac connections simultaneously.
  • Advanced 2-Stage 802.11ac Amplifiers
    Similar to how a twin turbo works for a sports car to provide more power and speed, the REA20 features advanced 2-Stage amplifiers that boost a Wi-Fi signal twice to achieve maximum extended range and performance.
  • Penetrate Walls and Eliminate Dead Spots
    Ten total amplifiers, a dedicated single band 2.4GHz, high gain antenna, a dedicated 5.0GHz high gain antenna and a high gain dual band antenna provide maximum range to easily penetrate walls and eliminate Wi-Fi dead spots.
  • BoostBand™ Technology Maximizes Speed
    Features exclusive technology that increases overall speed and performance by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and the Range Extender. Stream HD media without buffering, transfer large data files faster and play your games without lag!
  • Gigabit Networking
    The Range Extender provides up to five 10/100/1000M network ports for connecting additional wired computers, A/V devices and other network devices at ultra-fast wired speeds.
  • Powerful Processor
    The Range Extender features a powerful 660MHz internal processor for computing networking commands at blazing speeds which results in faster wired and wireless speeds.
  • USB Storage Support
    Attach a USB storage device, such as an external hard drive or flash drive, to share at home or in the office with other networked computers.
  • Smart Security Features
    You're in control! Smart security features allow you to restrict access to specific users, set a daily time schedule for when the network is available and control how far your extended wireless network coverage reaches through wireless output power adjustments. The Range Extender also supports secure push button setup for WPS enabled devices.
  • AirPlay®, AirPrint™, & Home Sharing
    Compatible with all Apple networking features for use with your iPads, iPhones, AirPlay speakers, AirPrint printers and more.
  • Universal Compatibility
    The Range Extender works great with all brands of standard single band (2.4GHz) or dual band (2.4GHz and 5.0GHz) wireless routers and service provider gateways. The REA20 simultaneously extends both 2.4 and 5.0GHz networks to deliver maximum wireless speed and bandwidth.*
  • Guest Networks
    Create up to eight additional wireless networks with unique passwords and bandwidth restrictions for guests.
  • Simple Setup
    The Setup Wizard connects the Range Extender to your home or office Wi-Fi network in minutes. Simply connect your PC or tablet to the Range Extender's Wi-Fi network, enter the setup URL, scan for your wireless network, select it and you're done!
  • Great for Large Homes and Offices
    The extended coverage and ultra-fast speeds of the Range Extender make it great for extending the Wi-Fi coverage for large homes, backyards, offices and warehouses.

  • SPECIFICATIONS

  • Wireless Standard:802.11a/b/g/n/ac
  • Frequency Band:2.4GHz, 5GHz Simultaneous
  • Wireless Speed: 2.4GHz: 300Mbps (Rx), 300Mbps (Tx), 5GHz: 867Mbps (Rx), 867Mbps (Tx)
  • Amplifier: 2 x 2.4GHz Amplifiers, 4 x 5GHz Amplifiers, 4 x Low Noise Amplifiers
  • Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS
  • Wireless Access Scheduling: Specific day and time
  • Wireless Coverage Control: 15% - 100% Output Power (Individually adjustable for 2.4GHz and 5.0GHz networks)
  • Features: Guest Wireless Networks (Up to 8 Additional), Parental Controls, User Access Control (MAC, IP Filtering)
  • Antennas: 1 x Detachable High Gain 2.4GHz Antenna, 1 x Detachable High Gain 5.0GHz Antenna, 1 x Detachable High Gain Dual Band Antenna
  • Ports: 5 x RJ-45 10/100/1000M LAN Ports (Local Ports), 1 x USB 2.0 Port for USB Storage
  • Power Adapter Rating: Switching Adapter (Input: 100-240v, Output: 12v 1.5A)
  • Mounting: Wall, Stand or Desktop

  • Setup Requirements

  • Wireless 802.11a/b/g/n or ac 2.4GHz or 5.0GHz Network
  • Computer with wired (RJ-45) or wireless (802.11a/b/g/n) adapter

  • Package Contents

  • High Power 700mW Dual Band AC Wi-Fi Range Extender
  • 1 x Detachable High Gain 2.4GHz Antenna
  • 1 x Detachable High Gain 5.0GHz Antenna
  • 1 x Detachable High Gain Dual Band Antenna
  • 1 x Power Adapter (100-240v)
  • 1 x Setup Guide
  • 1 x CD: Users Guide, Installation Video
  • Overview



    The Amped Wireless High Power 700mW Dual Band AC Wi-Fi Range Extender expands the range of any standard 802.11a/b/g/n/ac Wi-Fi network by repeating the signal (2.4GHz and 5.0GHz) from a Wi-Fi router and redistributing it in a new "extended" location. The flagship Range Extender provides industry leading Wi-Fi coverage coupled with ultra-fast AC1200 Wi-Fi speeds. The REA20 is equipped with a total of ten amplifiers, two 2.4GHz amplifiers, four 5.0GHz amplifiers, four low noise amplifiers, and three high gain antennas to provide high performance extended Wi-Fi coverage. It is the first Extender to feature double amplification with advanced 2-stage 5GHz amplifiers that ensure the longest range and extended coverage. The REA20 features 5 gigabit ports that allow additional networking devices, such as PCs and network switches to be connected at blazing fast speeds. The 802.11ac Wi-Fi Range Extender works with all brands of single band or dual band Wi-Fi routers and service provider gateways. Unleash your iPads, Android tablets, smartphones and e-readers with the most powerful, fastest, universal Wi-Fi range extender available.

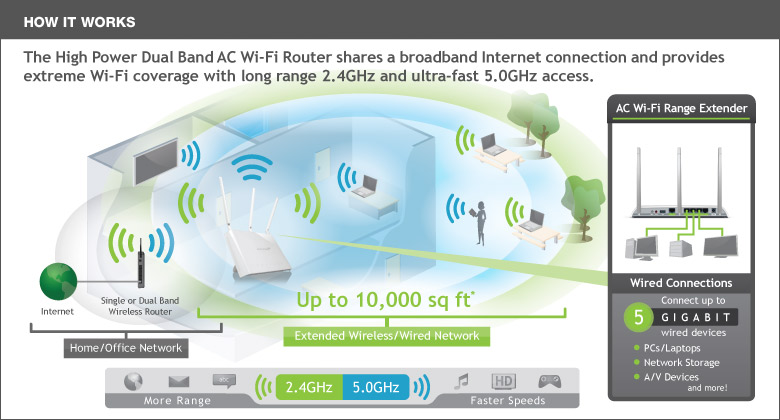

    How It Works

    Differences of 802.11ac vs 802.11n and 2.4GHz vs 5.0GHz networks

    Great for Large Homes and Offices

    Provide Wi-Fi coverage throughout your home, office or backyard
    Connect your home theater and stream HD media to all your devices simultaneously
    Provide industry leading Wi-Fi coverage for your laptops, tablets and smartphones

    Key Features

    • Extreme Range: Extended Wi-Fi Coverage
      Extend the range of any standard 2.4GHz or 5.0GHz Wi-Fi network by up to 10,000 sq ft.
    • Industry Leading Power: 2-Stage Amplifiers
      Double amplification provides extreme Wi-Fi coverage and helps to penetrate walls.
    • Ultra-Fast AC Wi-Fi Technology
      AC1200: 2.4GHz 300Mbps + 5.0GHz 867Mbps Wi-Fi data transfer speeds.
    • Three High Gain Antennas
      A dedicated single band 2.4GHz, antenna, a dedicated 5.0GHz antenna and a dual band antenna provide maximum range.
    • Universal Wi-Fi Range Extender
      Works with any standard 802.11a/b/g/n/ac single or dual band Wi-Fi router or network.*
    • Gigabit Networking (5 Wired Ports)
      Connect additional PCs, A/V devices, servers and printers at gigabit speeds.
    • USB Storage Support
      Share files from a USB hard drive or flash drive locally with networked computers.
    • Guest Networks
      Create wireless networks (up to 8) for guests.
    • AirPlay®, AirPrint™, & Home Sharing
      Compatible with all Apple networking features and supported devices.
    • User Access Control and Schedules
      Restrict network access to specific users and set schedules for when your extended network is on or off.

    Easy Wireless Setup with PC, Tablet or Smartphone

    • Connect your PC or tablet to the Range Extender
    • Access the Setup Menu
    • Scan for and select your network
    • The Setup Wizard will automatically configure your Internet connection and customize your wireless network.

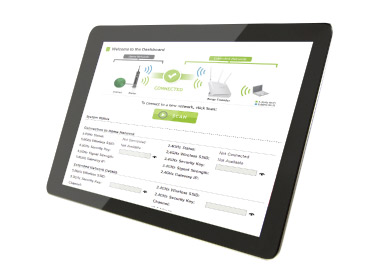

      Easy Setup

      Installation Video Step-by-Step Installation Video Included

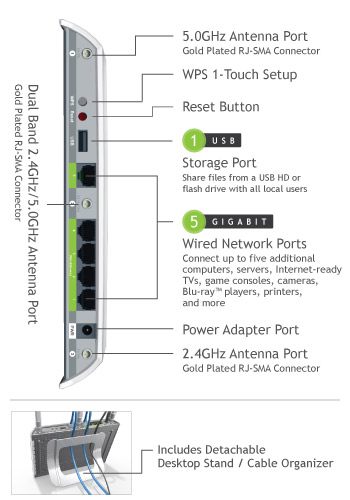

    Connectors and Ports

    Connectors and Ports

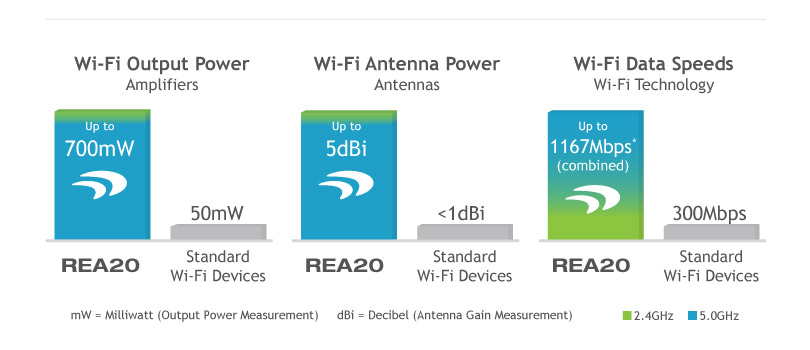

    The Amped Wireless Difference

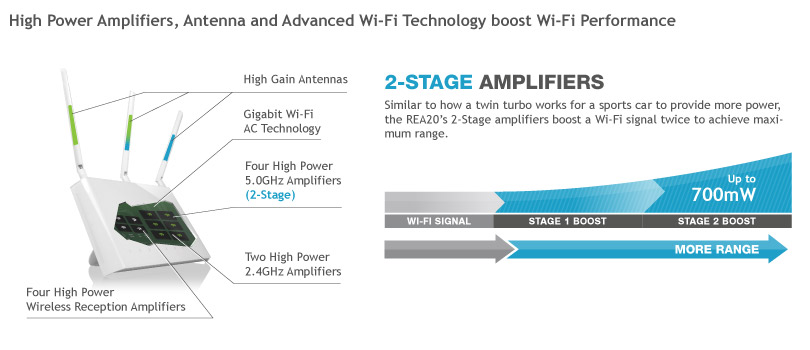

    2-Stage Amplifiers
    Amped Wireless Difference

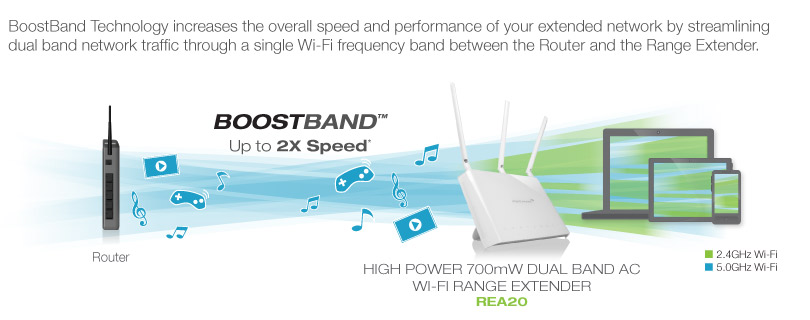

    BoostBand Technology

    BoostBand Technology



    Purchase the REA20
    High Power 700mW Dual Band AC Wi-Fi Range Extender:

    High Power 700mW Dual Band AC Wi-Fi Range Extender (REA20)



    Specifications are subject to change without notice.
    * Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.

    May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

    AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


    Features
    • Industry Leading Extended Dual Band Wi-Fi Coverage Industry Leading Extended Dual Band Wi-Fi Coverage
      Expand the range of your existing home/office single band or dual band wireless network by repeating the existing Wi-Fi signal. Two 2.4GHz amplifiers, four 5.0GHz 2-Stage amplifiers, four low noise amplifiers and three high gain antennas provide industry leading Wi-Fi power and extended coverage.
    • Ultra-Fast AC Wi-Fi Technology Ultra-Fast AC Wi-Fi Technology
      Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to three times faster than 802.11n. Great for streaming HD video to multiple devices simultaneously. AC1200 Wi-Fi speeds provide up to 300Mbps 2.4GHz 802.11n connections and up to 867Mbps 5.0GHz 802.11ac connections simultaneously.
    • Advanced 2-Stage 802.11ac Amplifiers Advanced 2-Stage 802.11ac Amplifiers
      Similar to how a twin turbo works for a sports car to provide more power and speed, the REA20 features advanced 2-Stage amplifiers that boost a Wi-Fi signal twice to achieve maximum extended range and performance.
    • Penetrate Walls and Eliminate Dead Spots Penetrate Walls and Eliminate Dead Spots
      Ten total amplifiers, a dedicated single band 2.4GHz, high gain antenna, a dedicated 5.0GHz high gain antenna and a high gain dual band antenna provide maximum range to easily penetrate walls and eliminate Wi-Fi dead spots.
    • BoostBand Technology Maximizes SpeedBoostBand™ Technology Maximizes Speed
      Features exclusive technology that increases overall speed and performance by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and the Range Extender. Stream HD media without buffering, transfer large data files faster and play your games without lag!
    • Gigabit Networking Gigabit Networking
      The Range Extender provides up to five 10/100/1000M network ports for connecting additional wired computers, A/V devices and other network devices at ultra-fast wired speeds.
    • Powerful Processor Powerful Processor
      The Range Extender features a powerful 660MHz internal processor for computing networking commands at blazing speeds which results in faster wired and wireless speeds.
    • USB Storage Support USB Storage Support
      Attach a USB storage device, such as an external hard drive or flash drive, to share at home or in the office with other networked computers.
    • Smart Security Features Smart Security Features
      You're in control! Smart security features allow you to restrict access to specific users, set a daily time schedule for when the network is available and control how far your extended wireless network coverage reaches through wireless output power adjustments. The Range Extender also supports secure push button setup for WPS enabled devices.
    • Works with AirPlay, AirPrint Home Sharing AirPlay®, AirPrint™, & Home Sharing
      Compatible with all Apple networking features for use with your iPads, iPhones, AirPlay speakers, AirPrint printers and more.
    • Universal Compatibility Universal Compatibility
      The Range Extender works great with all brands of standard single band (2.4GHz) or dual band (2.4GHz and 5.0GHz) wireless routers and service provider gateways. The REA20 simultaneously extends both 2.4 and 5.0GHz networks to deliver maximum wireless speed and bandwidth.*
    • Guest Networks Guest Networks
      Create up to eight additional wireless networks with unique passwords and bandwidth restrictions for guests.
    • Simple Setup Simple Setup
      The Setup Wizard connects the Range Extender to your home or office Wi-Fi network in minutes. Simply connect your PC or tablet to the Range Extender's Wi-Fi network, enter the setup URL, scan for your wireless network, select it and you're done!
    • Great for Large Homes and Offices Great for Large Homes and Offices
      The extended coverage and ultra-fast speeds of the Range Extender make it great for extending the Wi-Fi coverage for large homes, backyards, offices and warehouses.



    Specifications are subject to change without notice.
    * Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.

    May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

    AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


    Video
    Watch Video

    Specifications
    Wireless Standard: 802.11a/b/g/n/ac
    Frequency Band: 2.4GHz, 5.0GHz Simultaneous
    Wireless Speed:

    2.4GHz: 300Mbps (Rx), 300Mbps (Tx)
    5.0GHz: 867Mbps (Rx), 867Mbps (Tx)
    Amplifier:


    2 x 2.4GHz Amplifiers
    4 x 5.0GHz Amplifiers (2-stage)
    4 x Low Noise Amplifiers
    Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS
    Wireless Access Scheduling: Specific day and time
    Wireless Coverage Control:

    15% - 100% Output Power
    (Individually adjustable for 2.4GHz and 5.0GHz networks)
    Features:


    Guest Wireless Networks (Up to 8 Additional)
    Parental Controls
    User Access Control (MAC, IP Filtering)
    Antennas:


    1 x Detachable High Gain 2.4GHz Antenna
    1 x Detachable High Gain 5.0GHz Antenna
    1 x Detachable High Gain Dual Band Antenna
    Ports:

    5 x RJ-45 10/100/1000M LAN Ports (Local Ports)
    1 x USB 2.0 Port for USB Storage
    Power Adapter Rating: Switching Adapter (Input: 100-240v, Output: 12v 1.5A)
    Mounting: Wall, Stand or Desktop
    Warranty: 1 Year
    Setup Requirements:


    Wireless 802.11a/b/g/n or ac 2.4GHz or 5.0GHz Network
    Computer with wired (RJ-45) or wireless (802.11a/b/g/n or ac) adapter
    Package Contents:








    1 x High Power 700mW Dual Band AC Wi-Fi Range Extender
    1 x Detachable High Gain 2.4GHz Antenna
    1 x Detachable High Gain 5.0GHz Antenna
    1 x Detachable High Gain Dual Band Antenna
    1 x Power Adapter (100-240v)
    1 x Setup Guide
    1 x CD: Users Guide, Installation Video
    1 x Desktop Stand / Cable Organizer

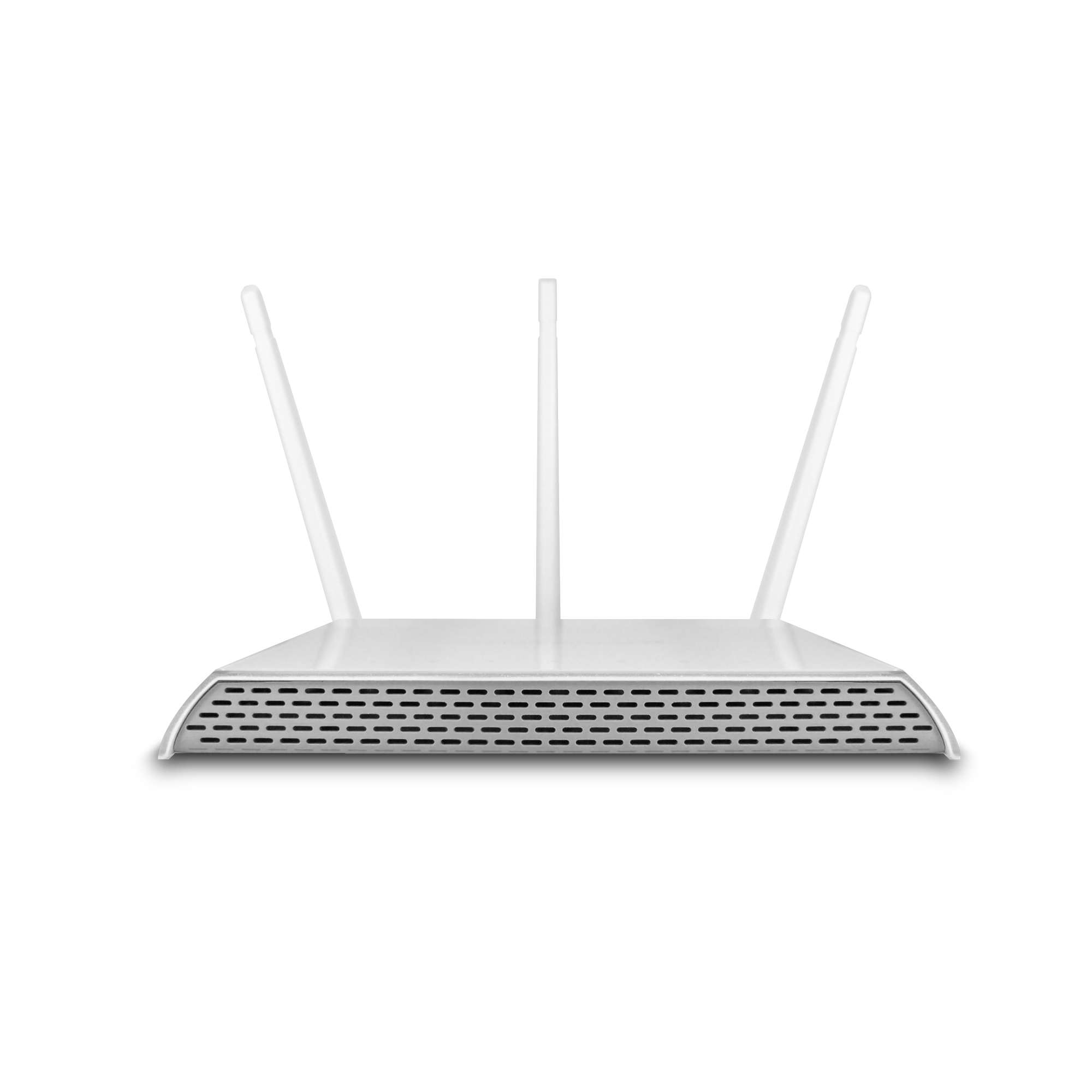

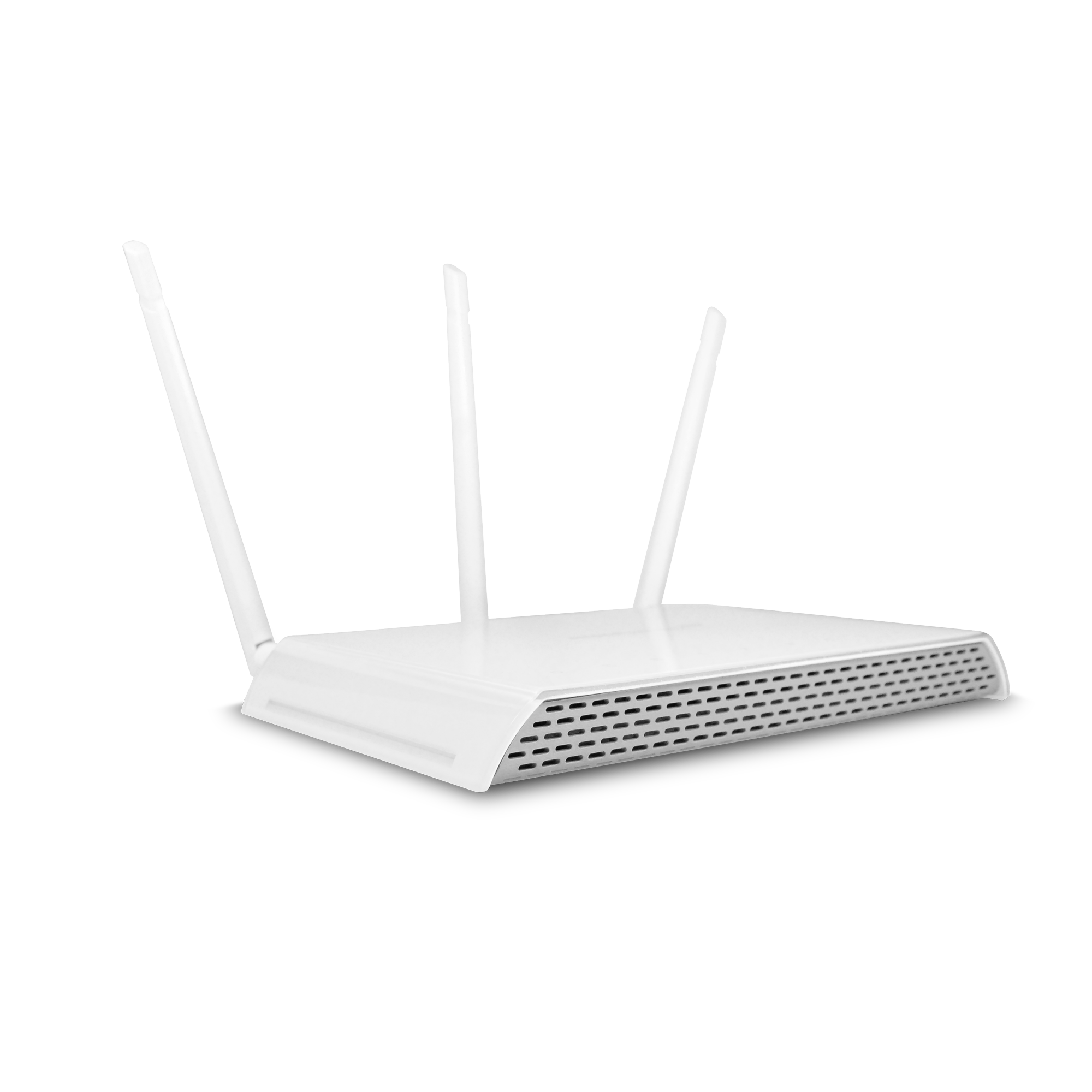

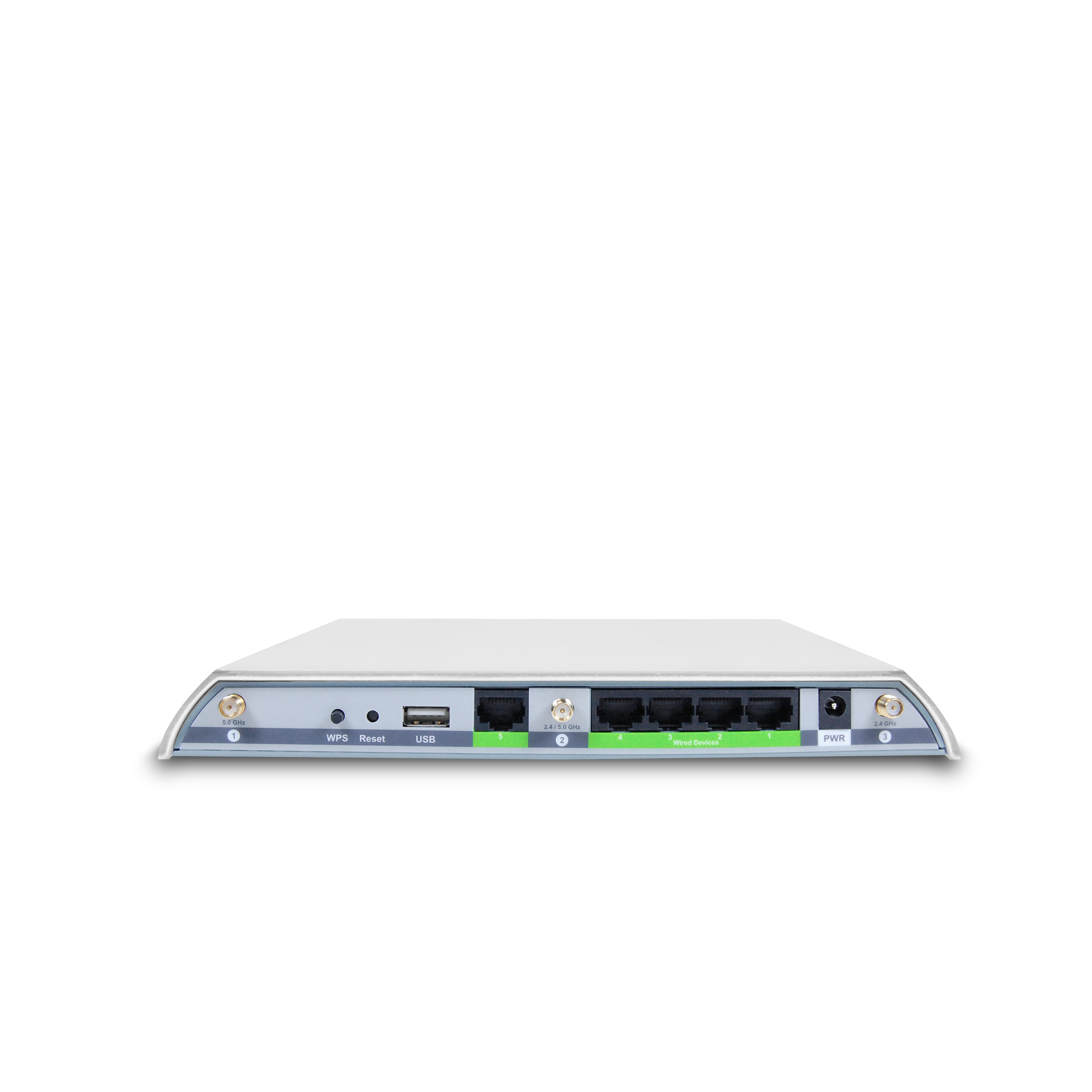

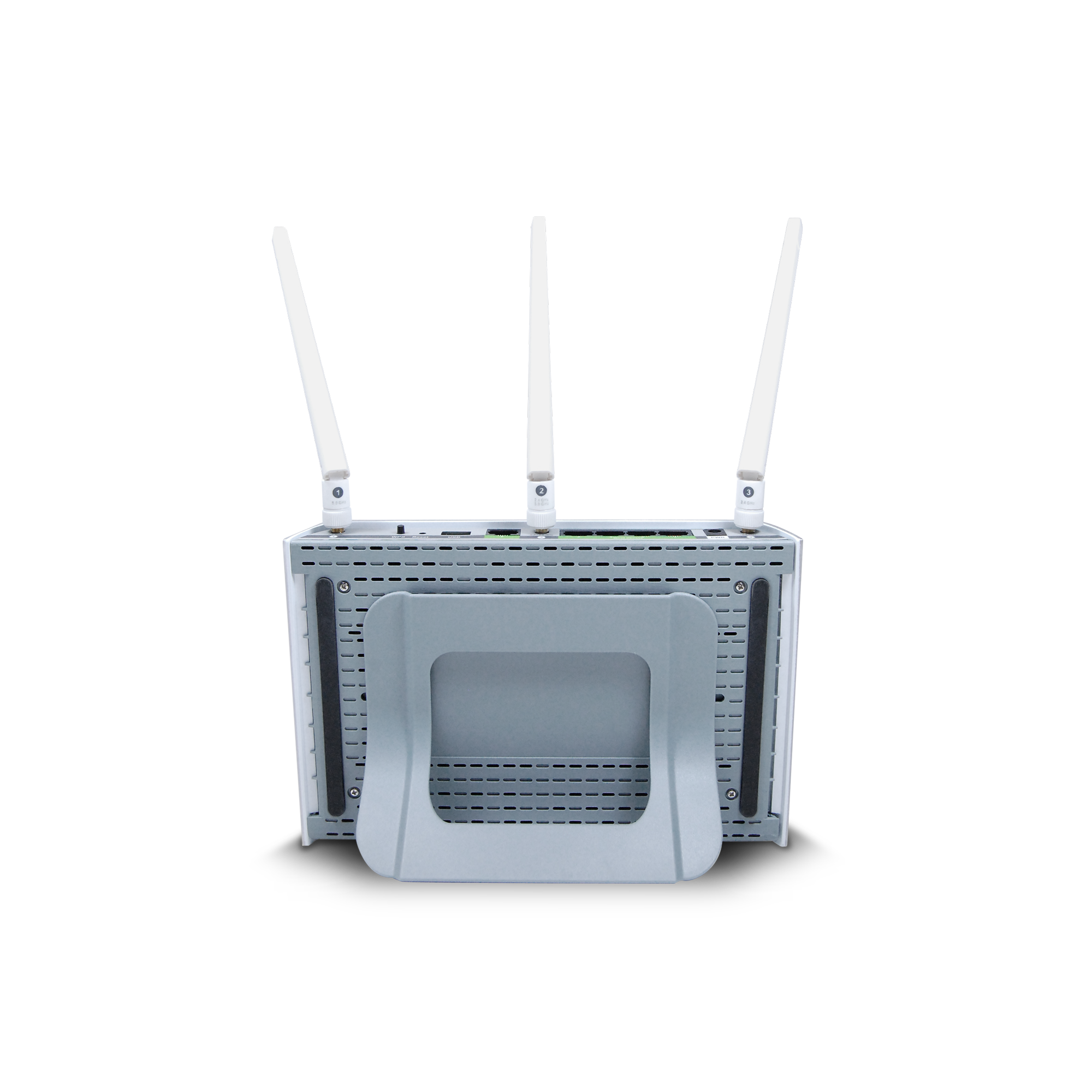

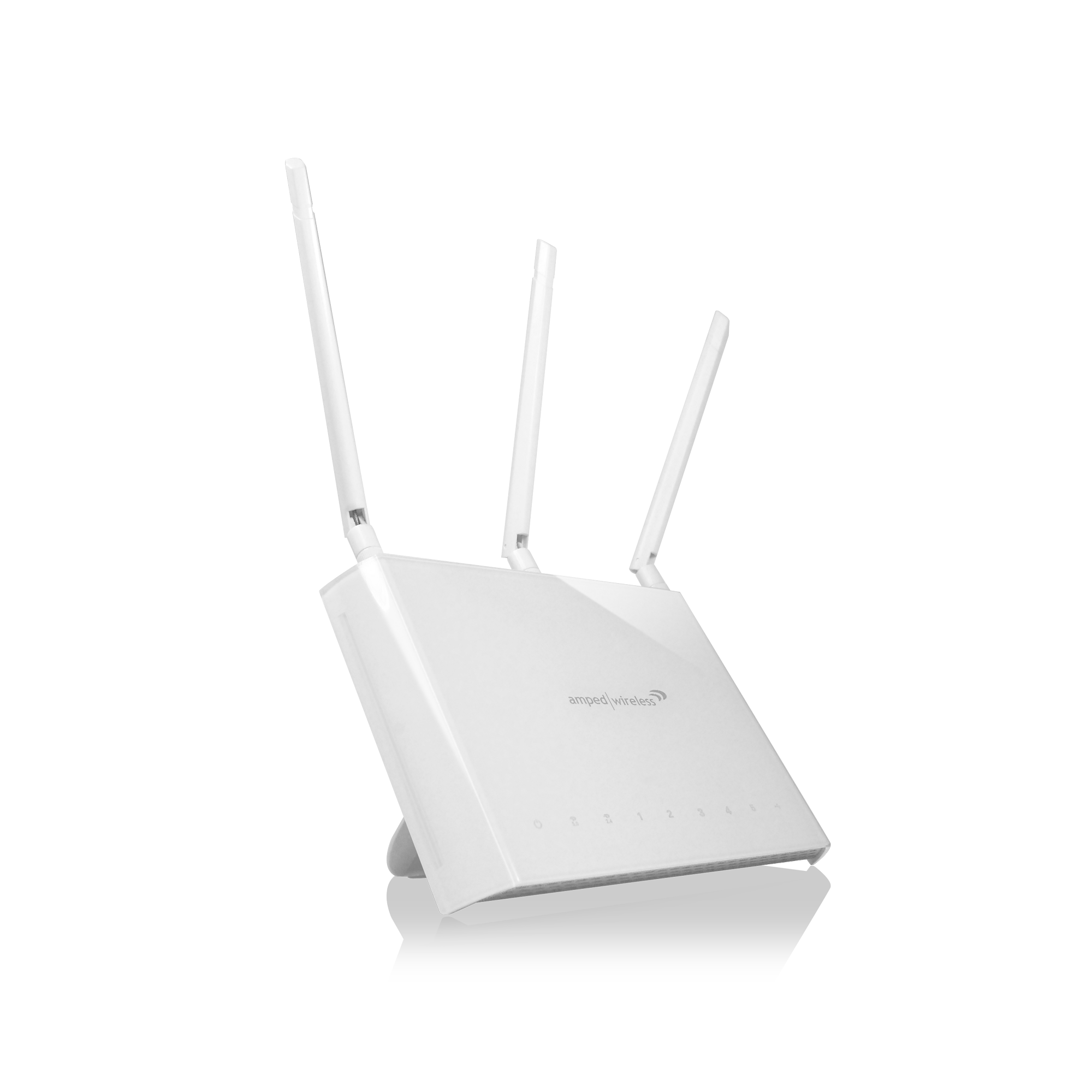

    Gallery

    Compare

    PERFORMANCE SPEC

    Product Series TAP           TAP
    Speed Standard AC750   AC1200   AC1200   AC1750   AC1750   AC1750   AC1900
    Frequency Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac   Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac   Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac   Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac   Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac   Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac   Simultaneous 2.4/5GHz, 802.11a/b/g/n/ac
    Output Power Up to 800mW   Up to 600mW   Up to 700mW   Up to 600mW   Up to 800mW   Up to 800mW   Up to 800mW
    Wireless Range1 Up to
    10,000 sq ft
      Up to
    10,000 sq ft
      Up to
    10,000 sq ft
      Up to
    10,000 sq ft
      Up to
    12,000 sq ft
      Up to
    12,000 sq ft
      Up to
    14,000 sq ft
    Antenna Type Detachable External
    & Internal
    Dual Band
      Detachable
    External
    & Internal
    Dual Band
      Detachable External,
    Dual Band
      Detachable
    External
    & Internal
    Dual Band
      Detachable
    External,
    Dual Band
      Detachable External
    & Internal
    Dual Band
      Detachable
    External,
    Dual Band
    Antenna Gain 2 x High Gain
    Omni-Directional
      2 x High Gain
    Omni-Directional
      3 x High Gain
    Omni-Directional
      3 x High Gain
    Omni-Directional
      3 x High Gain
    Omni-Directional
      3 x High Gain
    Omni-Directional
      4 x High Gain
    Omni-Directional
    Ports 3 Ports   1 Gigabit Port   5 Gigabit Ports   1 Gigabit Port   5 Gigabit Ports   5 Gigabit Ports   5 Gigabit Ports
    FEATURES
    Smart Security Features
    Supports
    WPA, WPA2, WPS

    Guest Wi-Fi Networks
    Wi-Fi Access Management
    Universal:
    Works with all Routers

    Setup Wizard Touch Screen Setup           Touch Screen Setup
    Interactive Touch Interface
    Adjustable Wi-Fi Coverage
    Gigabit Ports
    Power Processor
    1GHz Dual-Core Processor
    4 Antenna-Rx Technology
    Dual Band
    Interference-Free

    USB 2.0

    (Local Sharing Only)


    (Local Sharing Only)



    (Local Sharing Only)


    (Local Sharing Only)


    (Local Sharing Only)
    USB 3.0






    (Local Sharing Only)
    Signal Strength LED



    OTHER FEATURES
    Indoor Stand Vertical       Vertical           Vertical
    Mounting Options Wall, Desktop   Plug-in   Wall, Desktop   Plug-in   Wall, Desktop   Wall, Desktop   Wall, Desktop
    BoostBand™ Technology
    Range Increase Guarantee
    Free
    Wi-Fi Analytics Tool
    Mobile App

    1 Year Warranty

    Specifications are subject to change without notice.

    1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

    2 All transmission rates listed are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the unit. 802.11ac wireless speeds are achieved when connecting to other 802.11ac capable devices.

    3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

    Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


    FAQs
    Troubleshooting

    The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.

    Videos
    Watch Video

    Documentation
    Items
    Date
    Setup Guide Setup Guide (English) 8/21/2013
    Setup Guide

    Setup Guide (Spanish)

    8/21/2013
    Setup Guide

    Setup Guide (French)

    8/21/2013
    User's Guide User's Guide 8/21/2013
    Datasheet Datasheet 8/21/2013

    Downloads
    Items
    Notes
    Date
    Firmware Firmware Download and unzip. View Read Me.txt 6/12/2014

    Recent Updates
    • Added BoostBand™ Technology
      Increases the overall speed and performance of the Range Extender by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and the Range Extender.
    • Fixes minor operational issues and improves overall performance


    Important:
    Before upgrading firmware, always save your current settings from the Save/Reload Settings page.

    To access from the web menu:
    More Settings > Management > Save/Reload Settings > Save Settings to File
    After the firmware updates, load your saved settings to keep your existing configurations.


    Community Forum
    Write Review
    • bvseo_sdk, p_sdk, 3.2.1
    • CLOUD, getContent, 39.51ms
    • REVIEWS, PRODUCT
    • bvseo-msg: HTTP status code of 404 was returned;
    chat
