$199.99



Product Support
High Power AC2600 Wi-Fi Router - ATHENA-R2

High Power AC2600 Wi-Fi Router - ATHENA-R2

RTA2600-R2

Special Price $149.99

Regular Price: $199.99

High Power AC2600 Wi-Fi Router - ATHENA-R2

Ultimate Coverage, Maximum Streaming, More Devices

Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.

Description
High Power AC2600 Wi-Fi Router - ATHENA-R2
Reviews
Overview

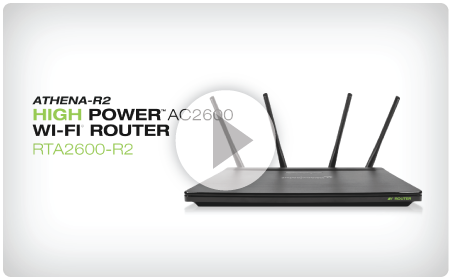

Watch Video


The ATHENA-R2 is the ultimate router for the multi-device household. Built with a powerful 1.3GHz Quad-Core Processor, 16 high power amplifiers, and 4 high gain antennas, the ATHENA-R2 delivers superb Wi-Fi performance. It is designed to provide unrivaled range, speed, and reliability for the most demanding networks with many connected devices. Incredibly fast AC2600 Wi-Fi technology provides up to 2.53Gbps, making lag and buffering a thing of the past for everyone. The ATHENA-R2 also features cutting edge MU-MIMO technology that enables multiple devices to receive data at once, granting uninterrupted streaming for all and up to 4X faster speeds. Get rid of your Wi-Fi dead zones, stream movies and shows with ease, and be free with your mobile devices. Wi-Fi for the modern home is here, with the ATHENA-R2.



Eliminate Wi-Fi Dead Spots

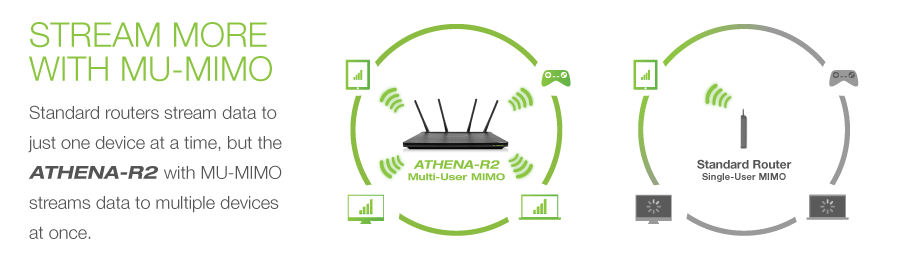

Stream More with MU-MIMO

Family



How does MU-MIMO Technology work? Say you have a traditional network with 3 devices and they are all downloading data at the same time. Device 2 will have to wait for Device 1 to finish receiving data from the router before it can receive its own data, then Device 3 must wait until Device 2 gets data before it will receive its data. The ATHENA-R2 with MU-MIMO, on the other hand, will allow up to 4 devices to receive data at once. This means increased Wi-Fi speeds and overall better performance for all connecting devices.2


Maximize Streaming & Eliminate Lag

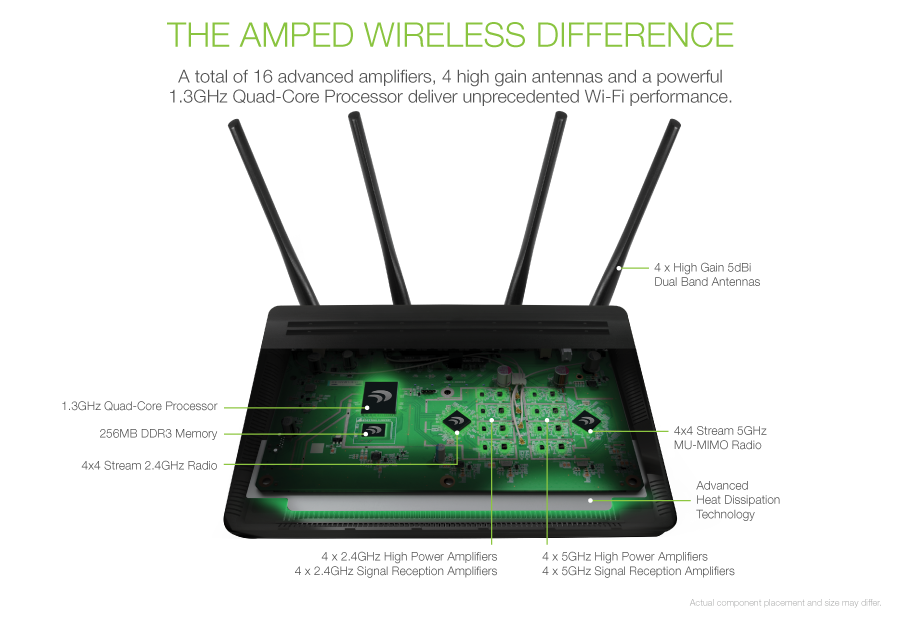

The Amped Wireless Difference

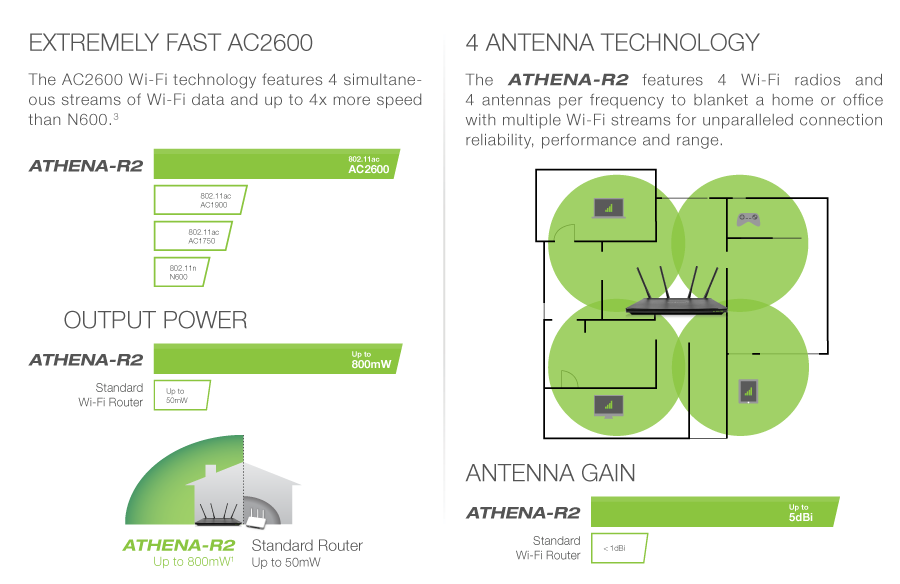

Extremely Fast AC2600 | 4 Antenna Technology


Key Features

  • Maximum Wi-Fi Range
    High Power Wi-Fi for whole home or whole office coverage
  • 16 Powerful Amplifiers & 4 Antennas
    Amplify Wi-Fi to the max with advanced amplifiers and 4 antennas
  • Advanced Multi-User MIMO
    Deliver data to multiple devices at once for a boost in performance and up to 4X more speed2
  • Unmatched AC2600 Wi-Fi Speeds
    Move faster than ever with speeds up to 2.53Gbps: 2.4GHz 800Mbps + 5GHz 1733Mbps3
  • 4 Antenna Technology
    Advanced 4 antenna, 4 stream architecture strengthens connections & covers more ground
  • High Power Quad-Core Processor
    A 1.3GHz quad-core processor handles heavy traffic with ease, for the best Wi-Fi experience
  • Advanced Security Features
    Adjust the coverage of your network, block websites
    and utilize SPI Firewall
  • Beamforming Technology
    Strengthen Wi-Fi connections with focused Wi-Fi
    streams for each connected device
  • Ultimate Gaming, HD & 4K
    Seamlessly stream HD and 4K content to multiple devices and eliminate gaming lag
  • Bandwidth Optimization
    Prioritize bandwidth for specific applications, networks and devices on your network
  • Share Files with USB
    Attach a USB drive and instantly share files at blazing-fast speeds, locally or remotely*

    *USB drive sold separately

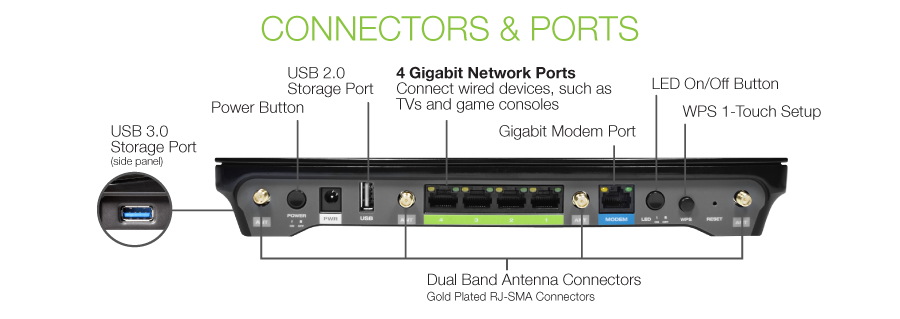

Connectors & Ports



Buy the ATHENA-R2 High Power AC2600 Wi-Fi Router with MU-MIMO:




Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network. To achieve the "up to 4X" data rate increase, four or more 1x1 MU-MIMO devices are needed with optimal network environment conditions.

3 All transmission rates listed, for example 800Mbps for 2.4GHz and 1733Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC2600 wireless speeds are achieved when connecting to other AC2600 capable devices.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


Features
  • Ultimate Range & Wi-Fi Coverage Ultimate Range & Wi-Fi Coverage
    Add long range Wi-Fi to your entire home or office with the ATHENA-R2. High Power amplifiers, low noise amplifiers and high gain antennas provide the ultimate Wi-Fi experience with a signal that easily penetrates walls and eliminates Wi-Fi dead spots.
  • 16 Powerful Amplifiers & 4 Antennas 16 Powerful Amplifiers & 4 Antennas
    The ATHENA-R2 is packed with the latest high power technology. With a total of 16 advanced amplifiers (4 x 2.4GHz amplifiers, 4 x 5GHz amplifiers, 4 x 2.4GHz signal reception amplifiers, 4 x 5GHz signal reception amplifiers) and 4 high gain 5dBi antennas, it delivers up to 800mW of output power. Providing the ultimate Wi-Fi performance and coverage, it is a leader in its class.
  • Multi-User MIMO – More Streaming for Everyone Multi-User MIMO – More Streaming for Everyone
    Standard routers send data to one device at a time. The ATHENA-R2 router with MU-MIMO technology delivers up to 4X the speed by serving data to multiple devices at once for uninterrupted and blazing-fast movie streaming, gaming and downloading for everyone at the same time.2
  • Unmatched AC2600 Wi-Fi for Flawless HD & 4K Streaming Unmatched AC2600 Wi-Fi for Flawless HD & 4K Streaming
    Move faster than ever with unprecedented Wi-Fi speeds of up to 2.53Gbps, that's 800Mbps on the 2.4GHz frequency and 1733Mbps on the 5GHz. Seamlessly stream HD and 4K content to multiple devices at once and eliminate gaming lag.3
  • More Bandwidth for More Devices More Bandwidth for More Devices
    The ATHENA-R2 combines AC2600 Wi-Fi speeds with Amped Wireless' High Power Technology to provide multiple room, blazing-fast Wi-Fi coverage. The increased bandwidth of AC2600 with MU-MIMO Wi-Fi means your entire family can stream whatever they want, whenever they want, with no lag, all at the same time.
  • Parental Security Features & Guest Networks Parental Security Features & Guest Networks
    You're in control! Smart security features allow you to set the exact days and times that the networks are available, control the strength of your signal, and even block specific devices from accessing the network at all. Create up to 8 additional Wi-Fi networks for guests or conference rooms and enjoy secure connections with WPS push button configuration.
  • Powerful 1.3GHz Quad-Core Internet Processor Powerful 1.3GHz Quad-Core Internet Processor
    Do more now with a powerful 1.4GHz dual core processor that is built to handle heavy traffic with ease, for the best networking experience.
  • Beamforming Technology for More Reliable Wi-Fi Connections Beamforming Technology for More Reliable Wi-Fi Connections
    Beamforming Technology strengthens Wi-Fi connections with focused Wi-Fi streams for each connected device. This results in fewer dropped signals for more reliable and stable connections.
  • Bandwidth Optimization to Prioritize Your Network Traffic Bandwidth Optimization to Prioritize Your Network Traffic
    Prioritize bandwidth for specific applications, networks, and devices on your network to optimize network bandwidth for streaming devices.
  • Share Files Faster with USB 3.0 Share Files Faster with USB 3.0
    Includes two USB ports, one USB 3.0 and one USB 2.0. These ports are designed for attaching USB storage devices, such as an external hard drive or flash drive, to share at home or in the office with other networked computers. Shared files can also be access remotely, over the Internet using a FTP client.
  • Simple Setup Simple Setup
    The Basic Setup Wizard walks you through the simple setup process and automatically configures the settings of your Internet provider. Taking only minutes, your new High Power Wi-Fi network will be up and running in no time.
Video
Watch Video
Specifications
Wireless Standard: 802.11a/b/g/n/ac
Frequency Band: 2.4/5GHz Simultaneous
Wireless Speed:

2.4GHz: 800Mbps (Rx), 800Mbps (Tx)
5GHz: 1733Mbps (Rx), 1733Mbps (Tx)
Amplifiers:


4 x 2.4GHz Amplifiers
4 x 5GHz Amplifiers
8 x Low Noise Amplifiers
Processor: High Power 1.3GHz Quad-Core Processor
Memory: 128MB Flash, 256MB DDR3
Wireless Coverage Control:

15% - 100% Output Power
(Individually adjustable for 2.4GHz and 5GHz networks)
Antennas: 4 x Detachable High Gain 5dBi Dual Band Antennas
Ports:



1 x RJ-45 10/100/1000M WAN Port (Modem Port)
4 x RJ-45 10/100/1000M LAN Ports (Local Ports)
1 x USB 2.0 Port for USB Storage
1 x USB 3.0 Port for USB Storage
Power Adapter Rating: Switching Adapter (Input: 100-240v, Output: 12v, 3A)
Mounting: Wall or Desktop
Warranty: 1 Year
Setup Requirements:

  • Broadband Internet modem with Ethernet Port
  • Computer with wired or wireless network adapter
Package Contents:

  • ATHENA-R2 High Power AC2600 Wi-Fi Router with MU-MIMO
  • 4 x Detachable High Gain Dual Band Antennas
  • Power Adapter (100-240v)
  • RJ-45 Ethernet Cable
  • Setup Guide

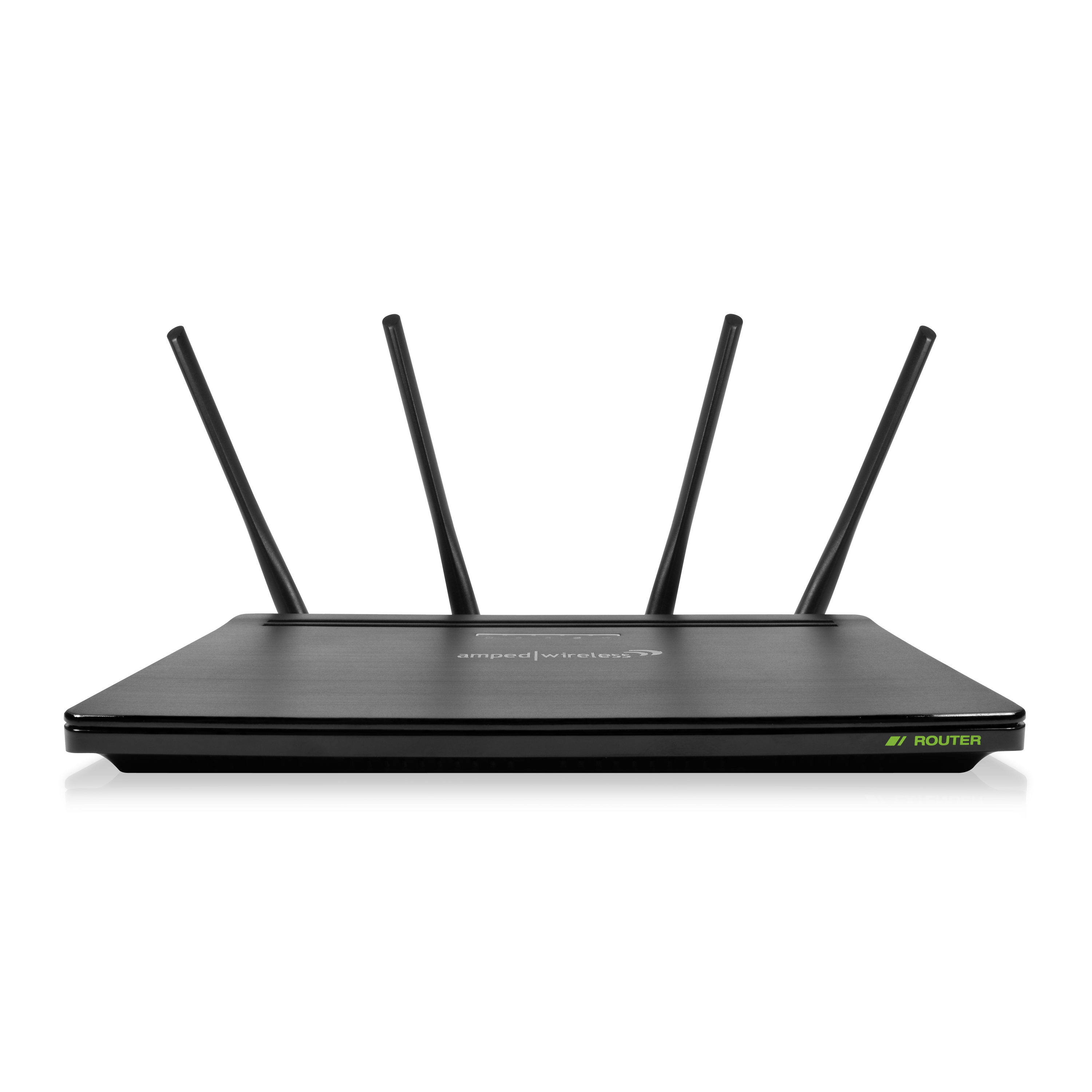

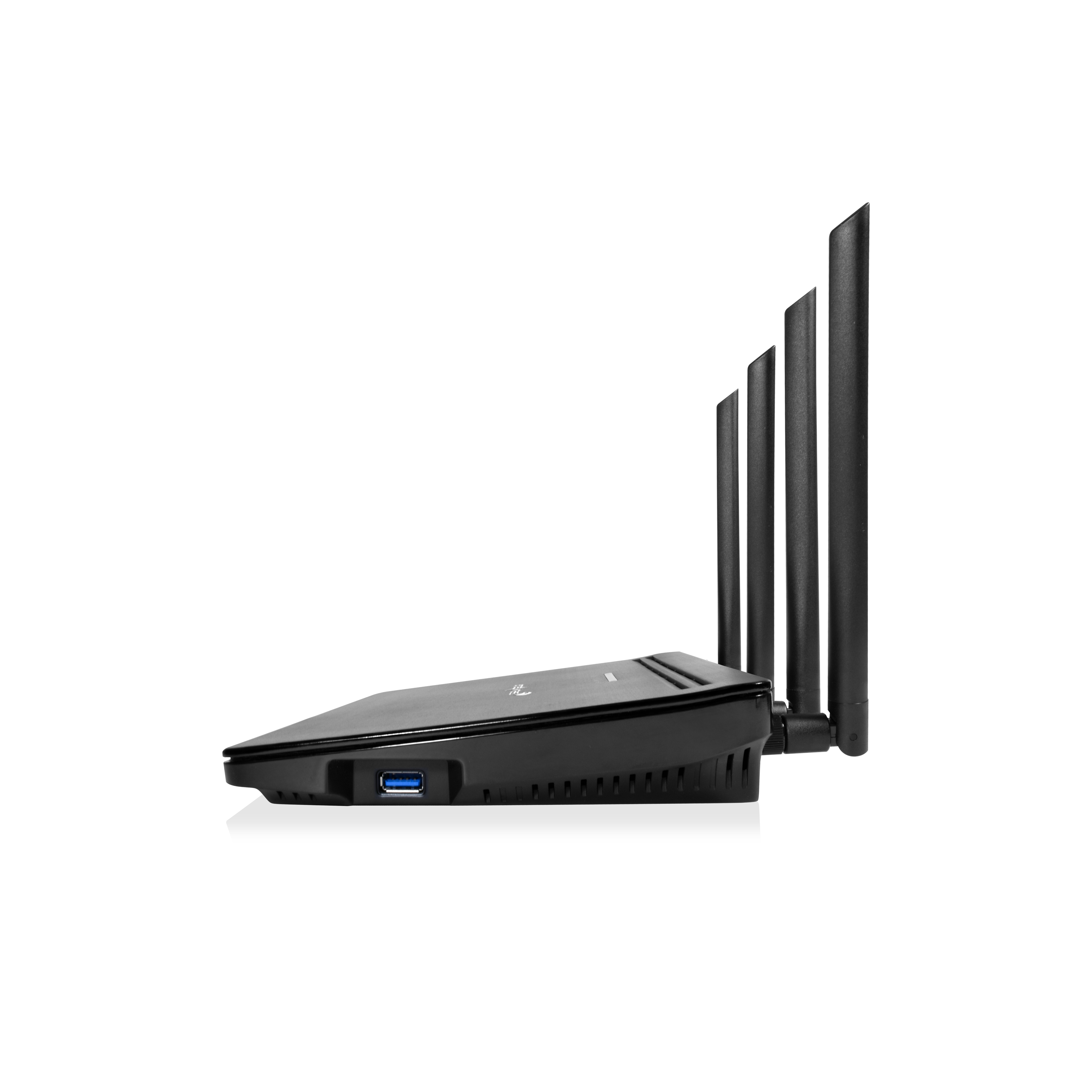

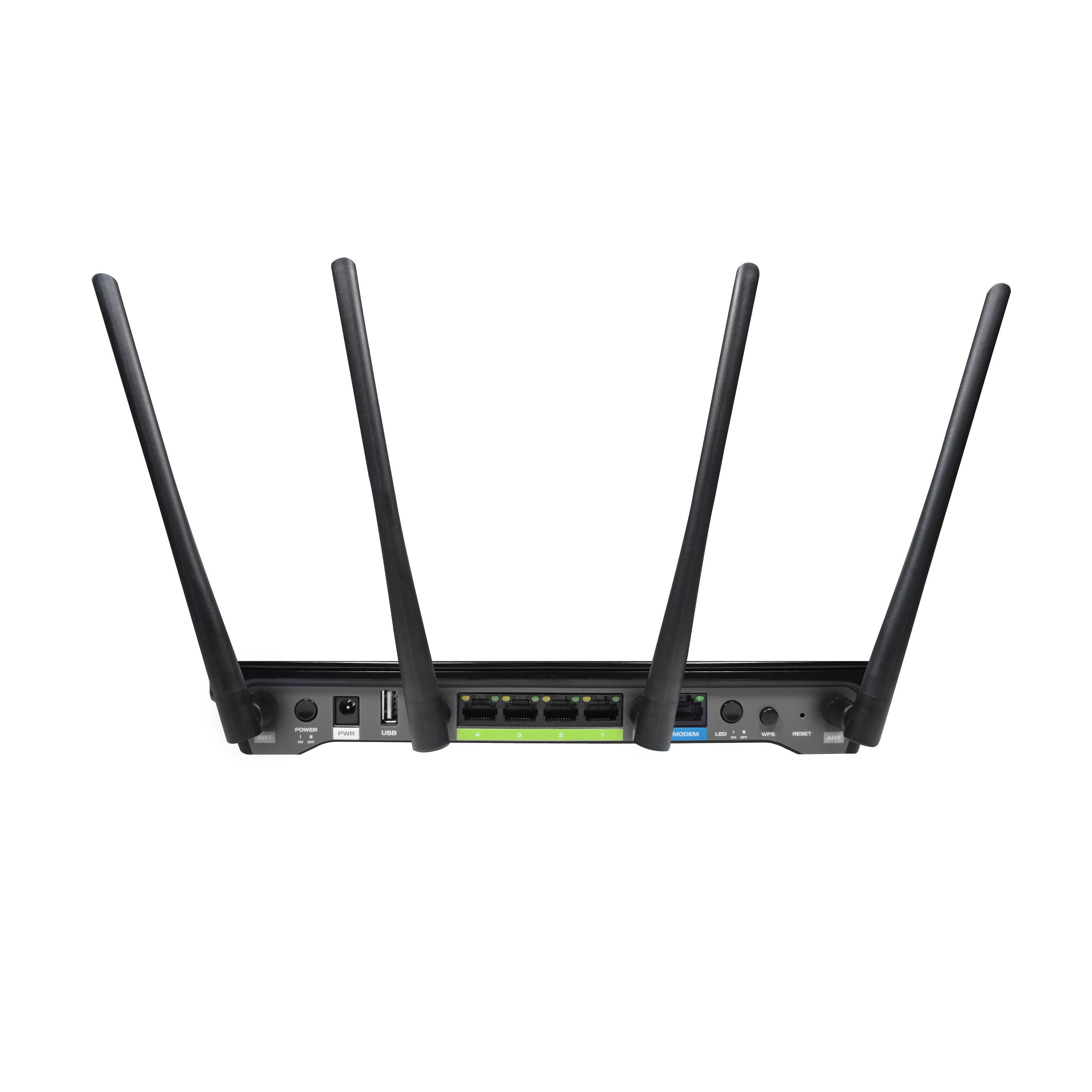

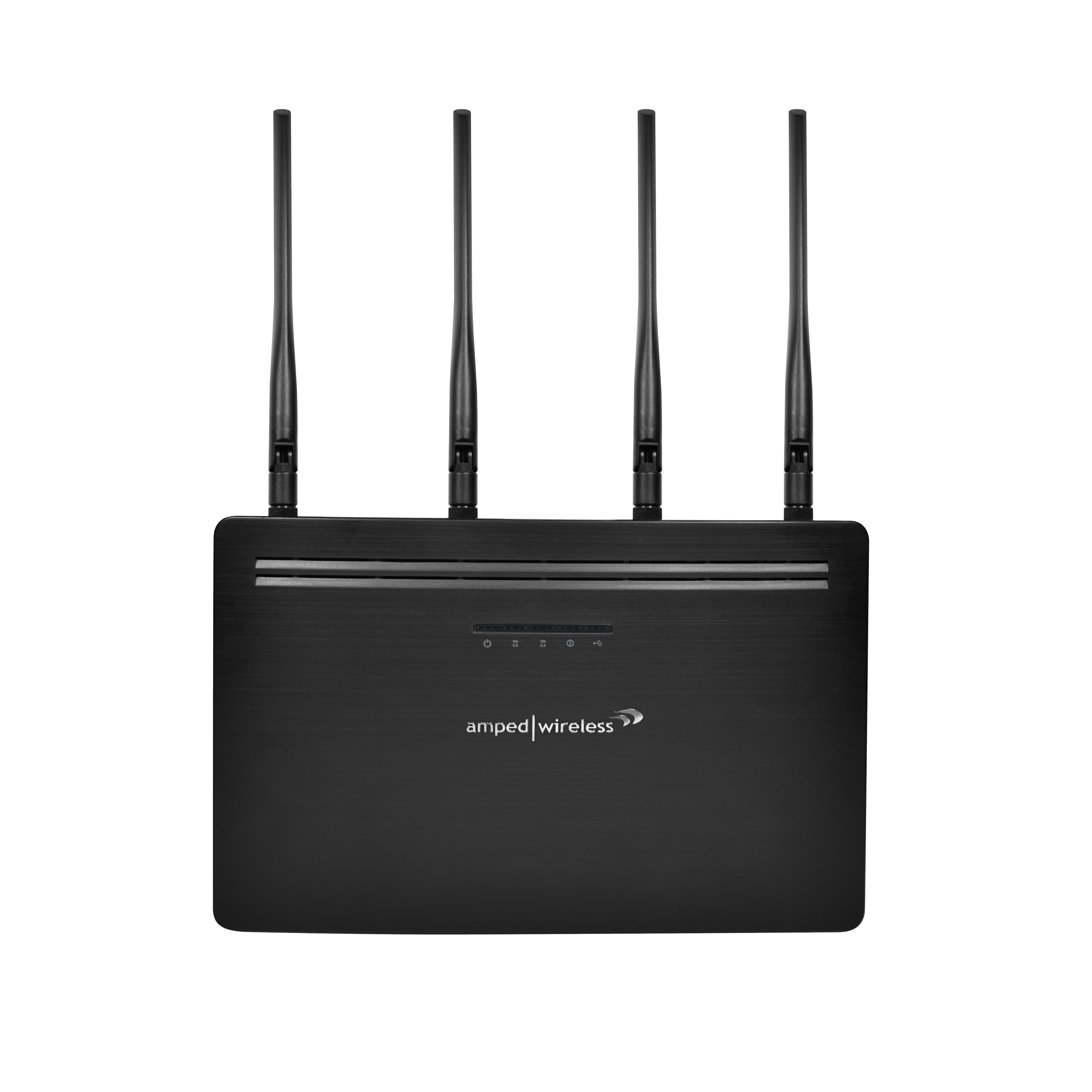

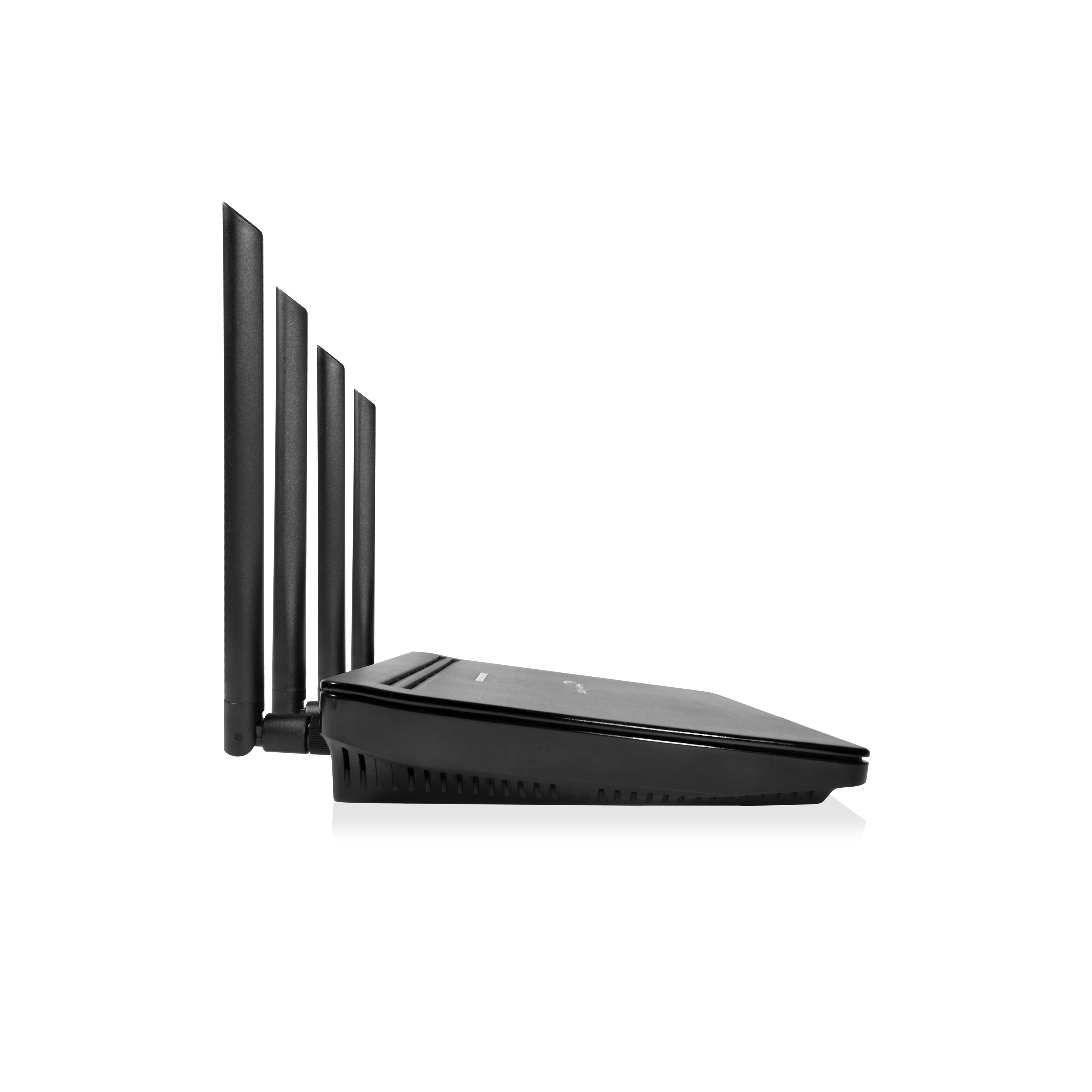

Gallery

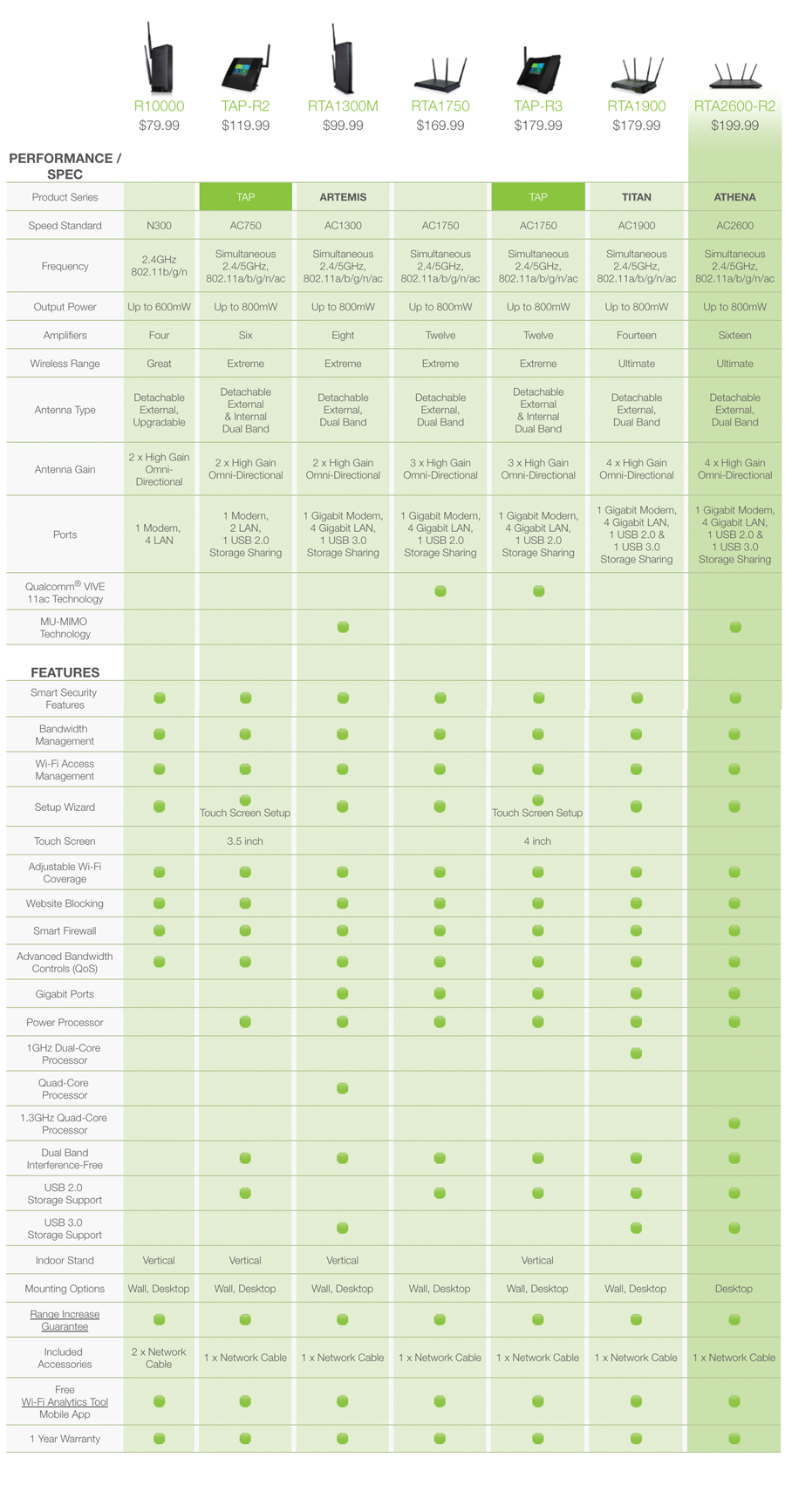

Compare

Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network. To achieve the "up to 4X" data rate increase, four or more 1x1 MU-MIMO devices are needed with optimal network environment conditions.

3 All transmission rates listed, for example 800Mbps for 2.4GHz and 1733Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC2600 wireless speeds are achieved when connecting to other AC2600 capable devices.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

FAQs
Troubleshooting

The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.

Videos

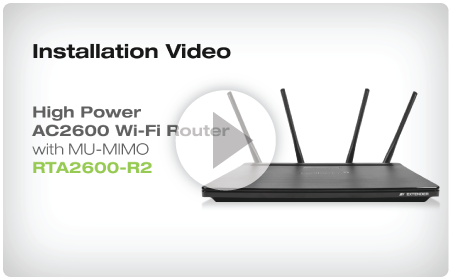

Watch Video

Documentation
Items
Date
Setup Guide Setup Guide (English) 1/13/2017
Setup Guide Setup Guide (Spanish) 1/13/2017
Setup Guide Setup Guide (French) 1/13/2017
User's Guide User's Guide 1/13/2017
Datasheet Datasheet 1/13/2017

Downloads
Items
Notes
Date
Firmware Firmware Download and Unzip. View Read Me.txt 10/18/2016
v1.01.05



Important:
Before upgrading firmware, always save your current settings from the Save/Reload Settings page.

To access from the web menu:
More Settings > Management > Save/Reload Settings > Save Settings to File
After the firmware updates, load your saved settings to keep your existing configurations.
