HELIOS High Power AC2200 Tri-Band Wi-Fi Router

HELIOS High Power AC2200 Tri-Band Wi-Fi Router

RTA2200T
$179.99
HELIOS High Power AC2200 Tri-Band Wi-Fi Router

Ultimage Coverage, Maximum Streaming, More Devices

Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.

Description
HELIOS High Power AC2200 Tri-Band Wi-Fi Router
Reviews
Overview
Extend the Range of any Wi-Fi Router by up to 15,000 sq ft


The HELIOS is a powerful tri-band router, specially designed for multi-device households. Built with a powerful Quad-Core ARM Processor, 12 high power amplifiers, and 4 total high gain antennas, the HELIOS delivers whole home Wi-Fi coverage at blazing-fast speeds. It is engineered to provide unmatched range and reliability for the most demanding networks with many connected devices. This tri-band router makes lag and buffering things of the past by delivering not just one, but two 5Ghz networks to connect to. With 3 total bands, your entire network will have less congestion and everything will move faster. The HELIOS also features cutting edge MU-MIMO technology that enables multiple devices to receive data at once, granting uninterrupted streaming for all. Get rid of your Wi-Fi dead zones, stream movies and shows with ease, and be free with your mobile devices. Whole-home Wi-Fi coverage is here, with HELIOS.




Tri-Band Technology


Tri-Band vs. Dual Band
Eliminate Wi-Fi Dead Spots
Get Rid of Buffering

The Amped Wireless Difference


Stream More with MU-MIMO
RTA2200T
Blazing-Fast AC2200
More Power, More Coverage


Key Features

  • Ultimate Wi-Fi Coverage
    Bring long range, reliable Wi-Fi to your entire home or office1
  • Tri-Band Technology
    Three Wi-Fi bands means more bandwidth for everyone
  • Eliminate Wi-Fi Dead Spots
    Amplify Wi-Fi to the max with 12 amplifiers and 4 high gain antennas (3 external & 1 internal)
  • AC2200 Wi-Fi Speeds
    Speeds up to: 2.4GHz 399Mbps, 5GHz (1) 866Mbps + 5GHz (2) 866Mbps2
  • MU-MIMO Technology
    Deliver data to multiple devices at once for a boost in performance and speed3
  • Wi-Fi Coverage Control
    Adjust the distance of your extended Wi-Fi network
    for more control
  • Guest Networks & User Access
    Create up to 8 networks for guests and restrict
    access to specific users
  • AirPlay®, AirPrint™, & Home Sharing
    Compatible with all Apple networking features
  • Share Files with USB 3.0
    Attach a USB drive and instantly share files, locally or remotely at blazing-fast speeds*

    *USB storage device not included.

Connectors & Ports



Pre-order the HELIOS High Power AC2200 Tri-Band Wi-Fi Router:



Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed, for example 399Mbps for 2.4GHz, 866Mbps for 5GHz (1), and 866Mbps for 5GHz (2), are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1200 wireless speeds are achieved when connecting to other AC1200 (and faster) capable devices.

3 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network. To achieve the "up to 3X" data rate increase, three or more 1x1 MU-MIMO devices are needed with optimal network environment conditions.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


Features
  • Extreme Range & Wi-Fi Coverage Extreme Range & Wi-Fi Coverage
    Add long range Wi-Fi to your entire home or office with the HELIOS. High Power amplifiers, low noise amplifiers and high gain antennas provide the ultimate Wi-Fi experience with a signal that easily penetrates walls and eliminates Wi-Fi dead spots.
  • Move Faster with Tri-Band Wi-Fi Move Faster with Tri-Band Wi-Fi
    The HELIOS is equipped with not one or two, but three separate bands for connecting; one 2.4GHz and two 5GHz bands. With three separate bands, every connection to the Router is met with less congestion as the devices are spread across many bands. The faster 5GHz bands are used for video streaming and high definition gaming, while the 2.4GHz band can be used for browsing, emailing and for connections that happen at longer distances.
  • 12 Powerful Amplifiers & 4 Antennas 12 Powerful Amplifiers & 4 Antennas
    The HELIOS is packed with the latest high power technology. With a total of 12 advanced amplifiers (2 x 2.4GHz amplifiers, 4 x 5GHz amplifiers, 2 x 2.4GHz signal reception amplifiers, 4 x 5GHz signal reception amplifiers) and 4 high gain antennas (3 x External, 1 x Internal), it delivers up to 800mW of output power. Providing the ultimate Wi-Fi performance and coverage, it is the leader in its class.1
  • Multi-User MIMO - More Streaming for Everyone Multi-User MIMO - More Streaming for Everyone
    Standard routers send data to one device at a time. The HELIOS with MU-MIMO technology delivers more speed by serving data to multiple devices at once for uninterrupted and blazing-fast movie streaming, gaming and downloading for everyone at the same time.2
  • Unmatched AC2200 Wi-Fi for Flawless HD & 4K Streaming Unmatched AC2200 Wi-Fi for Flawless HD & 4K Streaming
    Move faster than ever with unprecedented Wi-Fi speeds of up to 2.13Gbps, that's 399Mbps on the 2.4GHz frequency and 2 x 866Mbps on the 5GHz. Seamlessly stream HD and 4K content to multiple devices at once and eliminate gaming lag.1
  • Parental Security Features & Guest Networks Parental Security Features & Guest Networks
    You're in control! Smart security features allow you to set the exact days and times that the networks are available, control the strength of your signal, and even block specific devices from accessing the network at all.
  • Network Bridging with 4 Gigabit Wired Ports Network Bridging with 4 Gigabit Wired Ports
    Connect wired PCs, servers, printers, or A/V device, such as smart TVs, Blu-ray™ players, or gaming consoles at gigabit speeds with the four built-in wired network ports.
  • High Power, Quad-Core Internet ProcessorHigh Power, Quad-Core Internet Processor
    Do more now with a powerful Quad-Core Processor that is built to handle heavy traffic with ease, for the best networking experience. Data moves faster so websites and videos load faster.
  • Beamforming Technology for More Reliable Wi-Fi ConnectionsBeamforming Technology for More Reliable Wi-Fi Connections
    Beamforming Technology strengthens Wi-Fi connections with focused Wi-Fi streams for each connected device. This results in fewer dropped signals for more reliable and stable connections.
  • Bandwidth Optimization to Prioritize Your Network Traffic Bandwidth Optimization to Prioritize Your Network Traffic
    Prioritize bandwidth for specific applications, networks, and devices on your network to optimize network bandwidth for streaming devices.
  • Create Guest Networks Create Guest Networks
    Add up to eight additional wireless networks for other rooms or offices. Each network can be customized with unique passwords and bandwidth restrictions for guests.
  • Simple Setup Simple Setup
    The Basic Setup Wizard walks you through the simple setup process and automatically configures the settings of your Internet provider. Taking only minutes, your new High Power Wi-Fi network will be up and running in no time.
  • Share Files Faster with USB 3.0 Share Files Faster with USB 3.0
    Includes USB 3.0 that is designed for attaching a USB storage device, such as an external hard drive or flash drive, to share at home or in the office with other networked computers. Shared files can also be access remotely, over the Internet using a FTP client.



Connectors & Ports



Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed, for example 399Mbps for 2.4GHz, 866Mbps for 5GHz (1), and 866Mbps for 5GHz (2), are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1200 wireless speeds are achieved when connecting to other AC1200 (and faster) capable devices.

3 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network. To achieve the "up to 3X" data rate increase, three or more 1x1 MU-MIMO devices are needed with optimal network environment conditions.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


Video
Watch Video

Specifications
Wireless Standard: 802.11a/b/g/n/ac
Frequency Band: 2.4/5GHz Simultaneous
Wireless Speed: 2.4GHz: 399Mbps (Rx), 399Mbps (Tx)
5GHz (1): 866Mbps (Rx), 866Mbps (Tx)
5GHz (2): 866Mbps (Rx), 866Mbps (Tx)
Amplifiers: 2 x 2.4GHz Amplifiers
4 x 5GHz Amplifiers
2 x 2.4GHz Low Noise Amplifiers
4 x 5GHz Low Noise Amplifiers
Processor: Quad-Core ARM
Memory: 128MB DDR3
Wireless Coverage Control: 15% - 100% Output Power
(Individually adjustable for 2.4GHz and 5GHz networks)
Antennas: 3 x Detachable High Gain 5dBi Dual Band Antennas
1 x Internal High Gain Antenna
Ports: 1 x RJ-45 10/100/1000M WAN Ports (Modem Port)
4 x RJ-45 10/100/1000M LAN Ports (Local Ports)
1 x USB 3.0 Port for USB Storage
Power Adapter Rating: Switching Adapter (Input: 100-240v, Output: 12v, 3A)
Mounting: Wall or Desktop
Warranty: 1 Year
Setup Requirements:
  • Broadband Internet modem with Ethernet port
  • Computer with wired or wireless network adapter
Package Contents:
  • HELIOS High Power AC2200 Tri-Band Wi-Fi Router
  • 3 x Detachable High Gain Dual Band Antennas
  • Power Adapter (100-240v)
  • RJ-45 Ethernet Cable
  • Setup Guide

Gallery
Datasheet

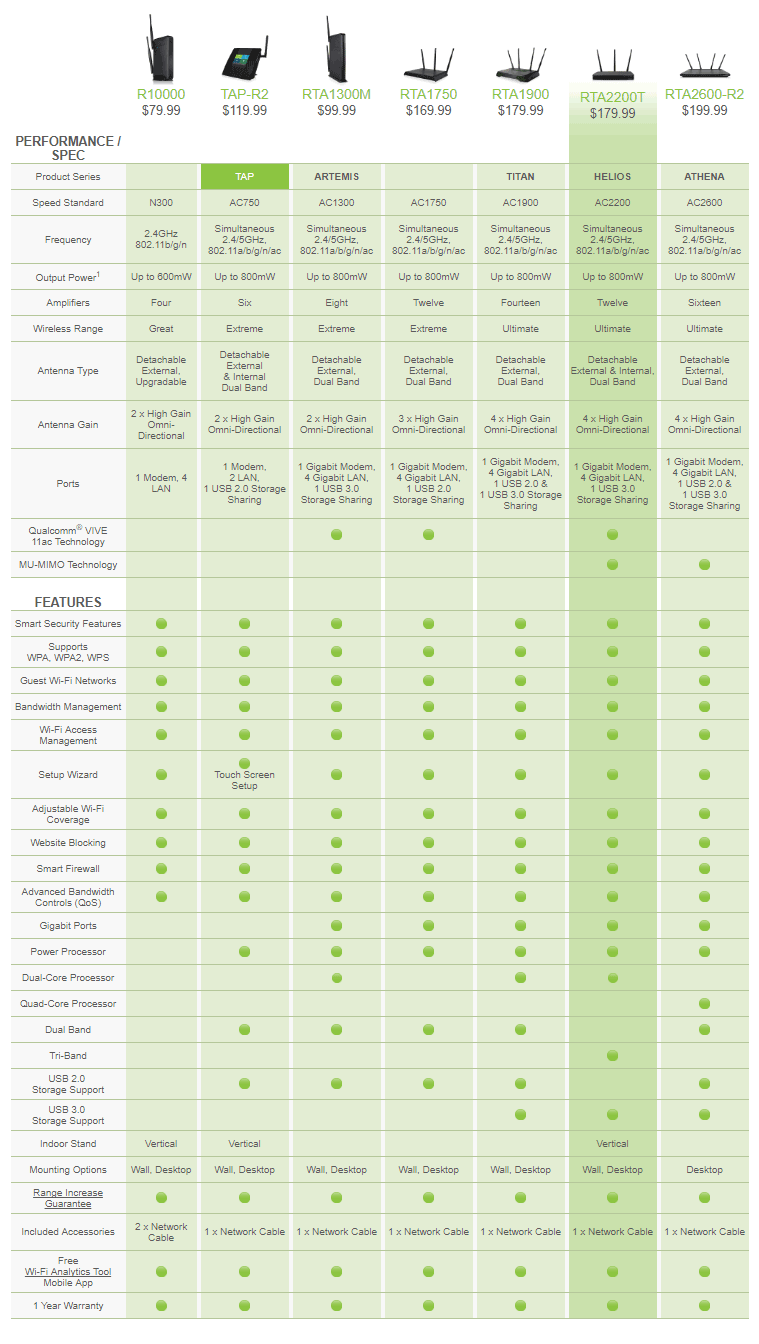

Compare

Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed, for example 399Mbps for 2.4GHz, 866Mbps for 5GHz (1), and 866Mbps for 5GHz (2), are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1200 wireless speeds are achieved when connecting to other AC1200 (and faster) capable devices.

3 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network. To achieve the "up to 3X" data rate increase, three or more 1x1 MU-MIMO devices are needed with optimal network environment conditions.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

FAQs
Troubleshooting

The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.

Videos
Watch Video

Documentation
Items
Date
Setup Guide Setup Guide (English) 5/24/2017
Setup Guide Setup Guide (Spanish) 5/24/2017
Setup Guide Setup Guide (French) 5/24/2017
User's Guide User's Guide 5/24/2017
Datasheet Datasheet 5/24/2017

Downloads
Items
Notes
Date
Firmware Firmware Download and unzip. View "Read Me.txt". 4/18/2017
v1.01.09



Important:
Before upgrading firmware, always save your current settings from the Save/Reload Settings page.

To access from the web menu:
More Settings > Management > Save/Reload Settings > Save Settings to File
After the firmware updates, load your saved settings to keep your existing configurations.
