$179.99



Product Support
Amped Wireless HELIOS-EX High Power AC2200 Wi-Fi Range Extender with DirectLink (RE2200T)

Amped Wireless HELIOS-EX High Power AC2200 Wi-Fi Range Extender with DirectLink (RE2200T)

RE2200T
$179.99
OR
HELIOS-EX High Power AC2200 Wi-Fi Range Extender with DirectLink

DirectLink™ is a dedicated connection that delivers up to 2X the speed of other extenders.

Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.

Description

The HELIOS-EX is a powerful tri-band range extender. A powerful Quad-Core ARM Processor, 12 high power amplifiers, and 4 total high gain antennas, deliver up to 12,000 square feet of additional Wi-Fi coverage. DirectLink technology creates a dedicated 5GHz link to the home network, freeing up the remaining two bands, resulting in up to 2X the speed of other extenders. This tri-band extender makes lag and buffering things of the past. The HELIOS-EX also features cutting edge MU-MIMO technology that enables multiple devices to receive data at once, granting uninterrupted streaming for all. Get rid of your Wi-Fi dead zones, stream movies and shows with ease, and be free with your mobile devices. Whole-home Wi-Fi coverage is here, with the HELIOS-EX.

Up to 12,000 Sq Ft of Coverage

Bring long range, reliable Wi-Fi to your entire home or office

Tri-Band with DirectLink™

Streamline Wi-Fi traffic and increase speeds by up to 2X

Eliminate Wi-Fi Dead Spots

Amplify Wi-Fi to the max with 14 amplifiers and 4 high gain antennas

AC2600 Wi-Fi Speeds

Speeds up to: 2.4GHz 399Mbps, 5GHz (1) 866Mbps + 5GHz (2) 866Mbps

MU-MIMO Technology

Deliver data to multiple devices at once for a boost in performance and speed

Guest Networks & User Access

Create up to 8 networks for guests and restrict access to specific users

Share Files with USB 3.0

Attach a USB drive* to instantly share files, locally, at blazing-fast speeds

* USB Storage device not included.

TECHNICAL SPECIFICATIONS

  • Frequency Bands: 2.4GHz/5GHz 802.11a/b/g/n/ac
  • Wireless Speed: 2.4GHz 399Mbps, 5GHz (1) 866Mbps, 5GHz (2) 866Mbps
  • Processor: Quad-Core
  • Memory: 128MB DDR3
  • Amplifiers: 2 x 2.4GHz Amplifiers, 4 x 5GHz Amplifiers
  • 2 x 2.4GHz Low Noise Amplifiers, 4 x 5GHz Low Noise Amplifiers
  • Antennas: 3 x Detachable High Gain 5dBi Antennas
  • 1 x Internal High Gain Antenna
  • Ports: 5 x RJ-45 10/100/1000M (LAN), 1 x USB 3.0 Port

PACKAGE CONTENTS

  • HELIOS-EX High Power AC2200 Tri-Band Wi-Fi Range Extender
  • with DirectLink
  • 3 x Detachable High Gain Dual Band Antennas
  • Power Adapter (100-240v)
  • Setup Guide

SYSTEM REQUIREMENTS

  • 2.4GHz or 5GHz 802.11a/b/g/n or ac Wi-Fi Network
  • Computer, tablet or smartphone with a web browser
Overview
Extend the Range of any Wi-Fi Router by up to 15,000 sq ft


The HELIOS-EX is a powerful tri-band range extender, specially designed for multi-device households. Built with a powerful Quad-Core ARM Processor, 12 high power amplifiers, and 4 total high gain antennas, the HELIOS-EX delivers up to 12,000 square feet of additional Wi-Fi coverage. It is engineered to provide unmatched range and reliability for the most demanding networks with many connected devices. DirectLink technology creates a dedicated 5GHz link to the home network, freeing up the remaining two bands, resulting in up to 2X the speed of other extenders. This tri-band extender makes lag and buffering things of the past. The HELIOS-EX also features cutting edge MU-MIMO technology that enables multiple devices to receive data at once, granting uninterrupted streaming for all. Get rid of your Wi-Fi dead zones, stream movies and shows with ease, and be free with your mobile devices. Whole-home Wi-Fi coverage is here, with the HELIOS-EX.



How It Works


DirectLink Technology
Eliminate Wi-Fi Dead Spots
RE2200T
Get Rid of Buffering

The Amped Wireless Difference
Stream More with MU-MIMO
RE2200T
Blazing-Fast AC2200
More Power, More Coverage


Key Features

  • Up to 12,000 Sq Ft of Coverage
    Bring long range, reliable Wi-Fi to your entire home or office1
  • Tri-Band with DirectLink™
    Streamline Wi-Fi traffic and increase speeds by up to 2X5
  • Eliminate Wi-Fi Dead Spots
    Amplify Wi-Fi to the max with 12 amplifiers and 4 high gain antennas (3 external & 1 internal)
  • AC2200 Wi-Fi Speeds
    Speeds up to: 2.4GHz 399Mbps, 5GHz (1) 866Mbps + 5GHz (2) 866Mbps2
  • MU-MIMO Technology
    Deliver data to multiple devices at once for a boost in performance and speed4
  • Wi-Fi Coverage Control
    Adjust the distance of your extended Wi-Fi network
    for more control
  • Guest Networks & User Access
    Create up to 8 networks for guests and restrict
    access to specific users
  • AirPlay®, AirPrint™, & Home Sharing
    Compatible with all Apple networking features
  • Share Files with USB 3.0
    Attach a USB drive and instantly share files, locally,
    at blazing-fast speeds*

    *USB storage device not included.

Simple Setup

Connectors & Ports


Purchase the HELIOS-EX High Power AC2200 Tri-Band Wi-Fi Range Extender with DirectLink™:
Top

Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed, for example 399Mbps for 2.4GHz and 866Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1200 wireless speeds are achieved when connecting to other AC1200 capable devices.

3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

4 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network.

5 DirectLink requires a 5GHz connection to the home network. DirectLink achieves up to 2X the speed by using a full duplex connection versus traditional half duplex connections of standard Wi-Fi Extenders. Increase in speed is achieved when compared with similar AC1200 Extenders.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


Features
  • Up to 12,000 Sq Ft of Wi-Fi Coverage Up to 12,000 Sq Ft of Wi-Fi Coverage
    Add long range Wi-Fi to your entire home or office with the HELIOS-EX. High Power amplifiers, low noise amplifiers and high gain antennas provide the ultimate Wi-Fi experience with a signal that easily penetrates walls and eliminates Wi-Fi dead spots.
  • Move Faster with TriBand DirectLink™ Technology Move Faster with TriBand DirectLink™ Technology
    The HELIOS-EX is equipped with specially designed DirectLink Technology that creates a dedicated 5GHz link back to the home network. This frees up the remaining two bands, so they can be 100% focused on communicating with your connecting devices. This dedicated backlink technology results in up to 2X the speed of other extenders.5
  • 12 Powerful Amplifiers & 4 Antennas 12 Powerful Amplifiers & 4 Antennas
    The HELIOS-EX is packed with the latest high power technology. With a total of 12 advanced amplifiers (2 x 2.4GHz amplifiers, 4 x 5GHz amplifiers, 2 x 2.4GHz signal reception amplifiers, 4 x 5GHz signal reception amplifiers) and 4 high gain antennas (3 x External, 1 x Internal), it delivers up to 800mW of output power. Providing the ultimate Wi-Fi performance and coverage, it is the leader in its class.1
  • Multi-User MIMO - More Streaming for Everyone Multi-User MIMO - More Streaming for Everyone
    Standard range extenders send data to one device at a time. The HELIOS-EX with MU-MIMO technology delivers more speed by serving data to multiple devices at once for uninterrupted and blazing-fast movie streaming, gaming and downloading for everyone at the same time.2
  • Unmatched AC2200 Wi-Fi for Flawless HD & 4K Streaming Unmatched AC2200 Wi-Fi for Flawless HD & 4K Streaming
    Move faster than ever with unprecedented Wi-Fi speeds of up to 2.13Gbps, that's 399Mbps on the 2.4GHz frequency and 2 x 866Mbps on the 5GHz. Seamlessly stream HD and 4K content to multiple devices at once and eliminate gaming lag.1
  • More Bandwidth for More Devices More Bandwidth for More Devices
    The HELIOS-EX combines Tri-Band with DirectLink Technology with Amped Wireless' High Power Technology to provide multiple room, ultra-fast Wi-Fi coverage. The increased bandwidth of AC2200 with MU-MIMO Wi-Fi means your entire family can stream whatever they want, whenever they want, with no lag, all at the same time.
  • Network Bridging with 5 Gigabit Wired Ports Network Bridging with 5 Gigabit Wired Ports
    Connect wired PCs, servers, printers, or A/V device, such as smart TVs, Blu-ray™ players, or gaming consoles at gigabit speeds with the four built-in wired network ports.
  • High Power Quad-Core Internet ProcessorHigh Power, Quad-Core Internet Processor
    Do more now with a powerful Quad-Core Processor that is built to handle heavy traffic with ease, for the best networking experience.
  • Universal Compatibility Universal Compatibility
    The Range Extender works with all brands of standard wireless routers and service provider gateways. The HELIOS-EX provides extended range 2.4 and 5GHz networks to deliver maximum wireless speed and bandwidth.3
  • Create Guest Networks Create Guest Networks
    Add up to eight additional wireless networks for other rooms or offices. Each network can be customized with unique passwords and bandwidth restrictions for guests.
  • Simple Setup Simple Setup
    The Basic Setup Wizard walks you through the simple setup process and automatically configures the settings of your Internet provider. Taking only minutes, your new High Power Wi-Fi network will be up and running in no time.
  • Easy Optimal Placement: Signal Strength LED Easy Optimal Placement: Signal Strength LED
    The Signal Strength LED gives you instant feedback on the connection between the Range Extender and your Home Network. Green, yellow and red lights atop the device convey whether the Extender is in the optimal, moderately optimal or poor installation location.
  • Share Files Faster with USB 3.0 Share Files Faster with USB 3.0
    Includes USB 3.0 that is designed for attaching a USB storage device, such as an external hard drive or flash drive, to share at home or in the office with other networked computers. Shared files can also be access remotely, over the Internet using a FTP client.



Connectors & Ports



Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed, for example 399Mbps for 2.4GHz and 866Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1200 wireless speeds are achieved when connecting to other AC1200 capable devices.

3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

4 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network.

5 DirectLink requires a 5GHz connection to the home network. DirectLink achieves up to 2X the speed by using a full duplex connection versus traditional half duplex connections of standard Wi-Fi Extenders. Increase in speed is achieved when compared with similar AC1200 Extenders.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

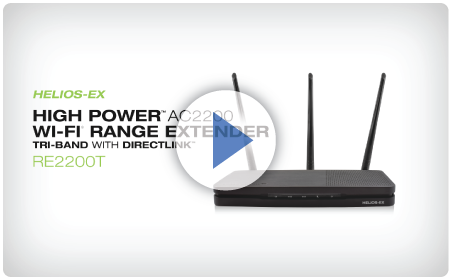

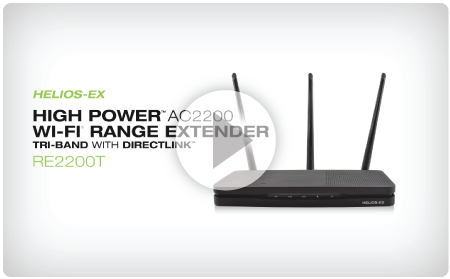

Video
Watch Video

Specifications
Wireless Standard: 802.11a/b/g/n/ac
Frequency Band: 2.4/5GHz Simultaneous
Wireless Speed: 2.4GHz: 399Mbps (Rx), 399Mbps (Tx)
5GHz (1): 866Mbps (Rx), 866Mbps (Tx)
5GHz (2): 866Mbps (Rx), 866Mbps (Tx)
Amplifiers: 2 x 2.4GHz Amplifiers
4 x 5GHz Amplifiers
2 x 2.4GHz Low Noise Amplifiers
4 x 5GHz Low Noise Amplifiers
Processor: Quad-Core
Memory: 128MB DDR3
Wireless Coverage Control: 15% - 100% Output Power
(Individually adjustable for 2.4GHz and 5GHz networks)
Antennas: 3 x Detachable High Gain 5dBi Dual Band Antennas
1 x Internal High Gain Antenna
Ports: 5 x RJ-45 10/100/1000M LAN Ports (Local Ports)
1 x USB 3.0 Port for USB Storage
Power Adapter Rating: Switching Adapter (Input: 100-240v, Output: 12v, 3A)
Mounting: Wall or Desktop
Warranty: 1 Year
Setup Requirements:
  • 2.4GHz or 5GHz 802.11a/b/g/n or ac Wi-Fi Network
  • Computer, tablet or smartphone with a web browser
Package Contents:
  • HELIOS-EX High Power AC2200 Tri-Band Wi-Fi Range Extender with DirectLink
  • 3 x Detachable High Gain Dual Band Antennas
  • Power Adapter (100-240v)
  • Setup Guide

Gallery
Datasheet

Download

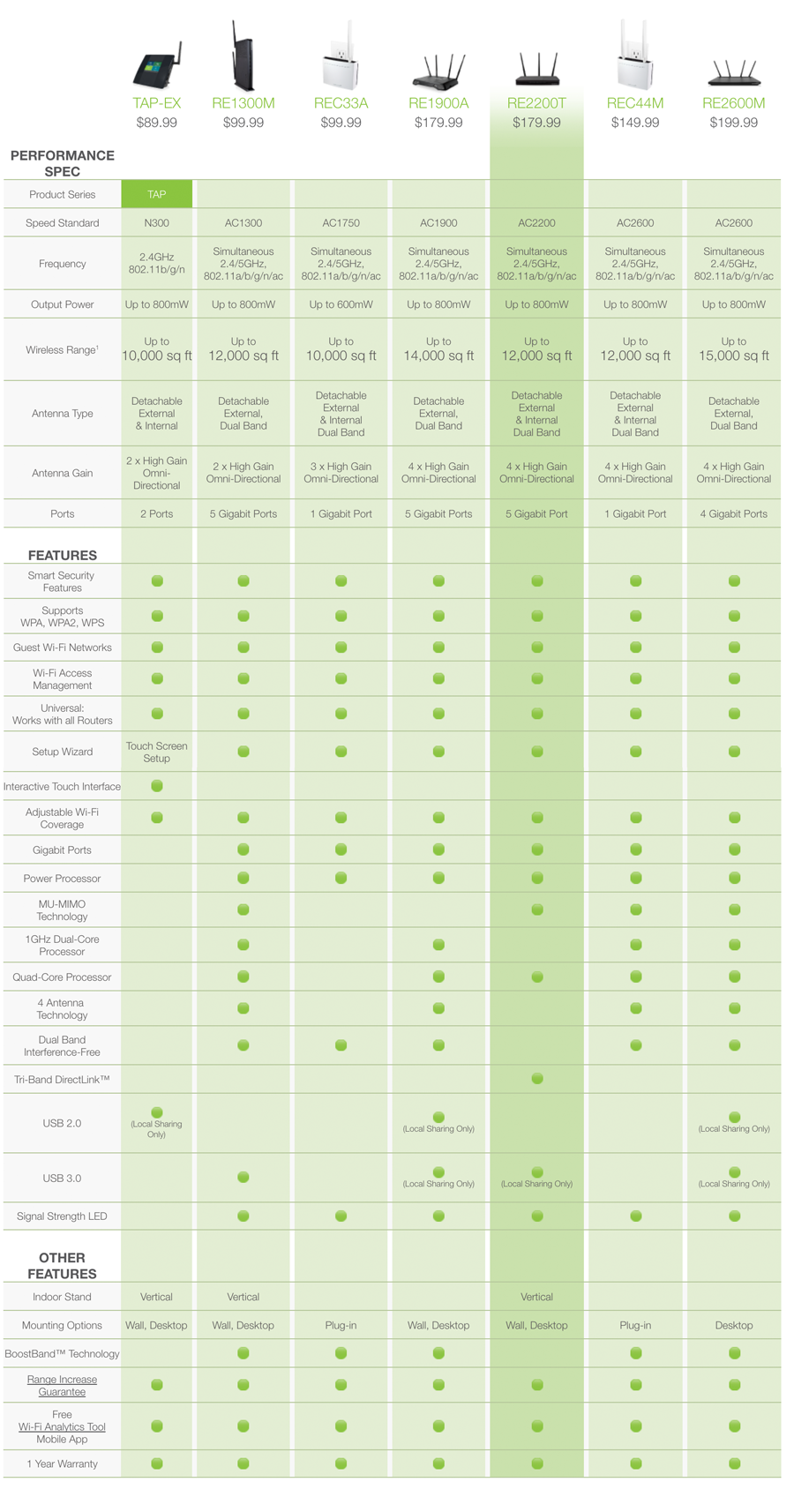

Compare

Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed, for example 399Mbps for 2.4GHz and 866Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1200 wireless speeds are achieved when connecting to other AC1200 capable devices.

3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

4 For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network.

5 DirectLink requires a 5GHz connection to the home network. DirectLink achieves up to 2X the speed by using a full duplex connection versus traditional half duplex connections of standard Wi-Fi Extenders. Increase in speed is achieved when compared with similar AC1200 Extenders.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

FAQs
Troubleshooting

The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.
I entered http://setup.ampedwireless.com and it failed to open the Web Menu.
I could NEVER log on to the Range Extender wirelessly.
I can no longer access the Web Menu or the Range Extender no longer responds.
I cannot connect to my Home Network. I received an error when running the Setup Wizard.
I cannot find my Home Network when scanning for wireless networks in the Setup Wizard.
My Range Extender was working fine previously, but now I can no longer access the Internet through the Range Extender. Or, I had a POWER OUTAGE and now the Range Extender no longer works.
I have a dual-band router and I cannot extend the network.
I cannot find any wireless networks (Home Networks) to repeat.
I am connected to a Home Network, however, I do not have Internet access.
I can no longer connect to the Range Extender wirelessly.
The connection to the Home Network seems slow. File transfers take a long time to transfer.
I am only getting 3 or 4 wireless signal bars on my wireless computer and I am within 10 feet of the Range Extender.
The range from the Range Extender seems low or the speed is slow.
My Wireless Access Schedule is being erratic and not working at the correct times.
Wi-Fi Protected Setup (WPS) is not working. Push button configuration does not detect the connection.

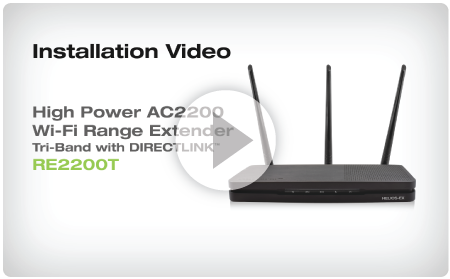

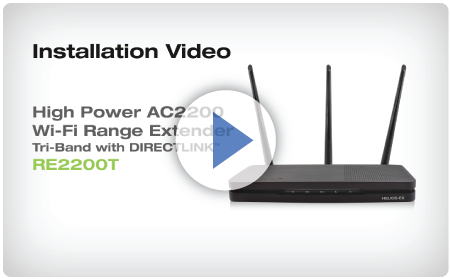

Videos
Watch Video

Documentation
Items
Date
Setup Guide Setup Guide (English) 2/23/2017
Setup Guide Setup Guide (Spanish) 2/23/2017
Setup Guide Setup Guide (French) 2/23/2017
User's Guide User's Guide 2/23/2017
Datasheet Datasheet 2/23/2017

Downloads
Items
Notes
Date
Firmware Firmware Download and unzip. View "Read Me.txt". 2/17/2017
v1.0015

Recent Updates
  • Updated Mobile Setup
  • Improved overall performance


Important:
Before upgrading firmware, always save your current settings from the Save/Reload Settings page.

To access from the web menu:
More Settings > Management > Save/Reload Settings > Save Settings to File
After the firmware updates, load your saved settings to keep your existing configurations.
