The Amped Wireless High Power AC1200 Wi-Fi PCI-E Adapter allows your desktop computer to connect to Wi-Fi networks from extreme distances and with blazing speed. The PCI20E is a high performance Wi-Fi network adapter that features high power amplifiers and high gain dual band antennas to achieve up to three times the range of standard Wi-Fi adapters. It connects to your desktop PC with PCI-E and features AC1200 Wi-Fi technology to provide unprecedented Wi-Fi connection speeds: Up to 300Mbps for 2.4GHz networks and up to 867Mbps for 5.0GHz connections. The included magnetic antenna stand allows the antennas to be placed on top of a desk or mounted to a computer case for optimal signal reception and transmission. The PCI20E allows you to stream HD content, download large files and surf the web faster than ever before and with more range.
Key Features
Extreme Dual Band Range
Connect your desktop PC to Wi-Fi networks from greater distances.
High Power 802.11ac Technology
Two high power 2.4GHz amplifiers, two high power 5.0GHz 802.11ac amplifiers and two high gain dual band antennas provide maximum range.
Ultra-Fast AC Wi-Fi Technology
Features next generation AC1200 Wi-Fi technology for transfer speeds at 2.4GHz 300Mbps and 5.0GHz 867Mbps.
High Gain, Dual Band Antennas w/ Stand
Optimally tuned, advanced high gain 5dBi detachable antennas with a magnetic stand for optimal performance.
Advanced Heat Sink Keeps Things Cool
Includes a high dissipation heat sink to avoid overheating and to keep performance at its highest level.
Simple Setup

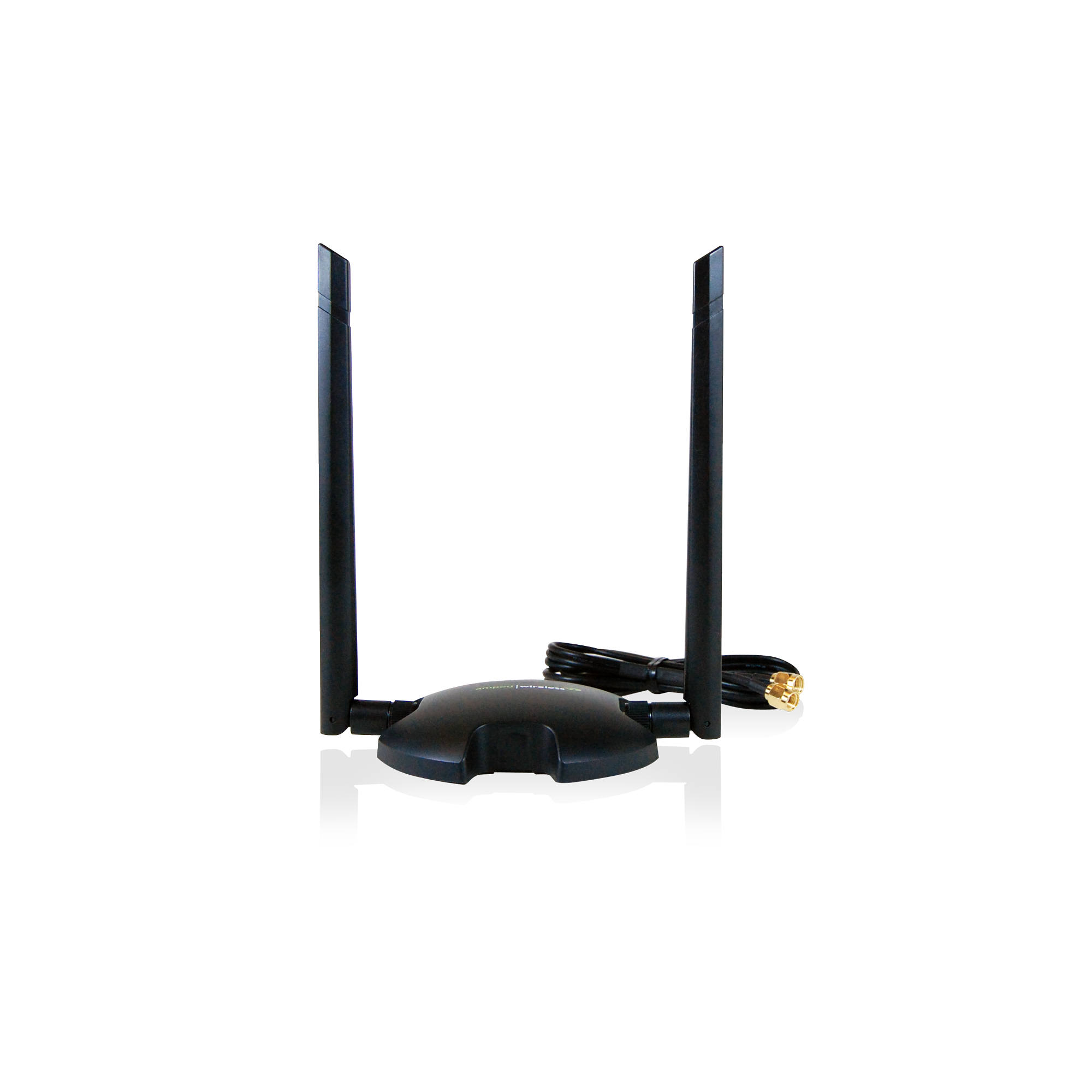

Magnetic Antenna Stand
High Power Technology

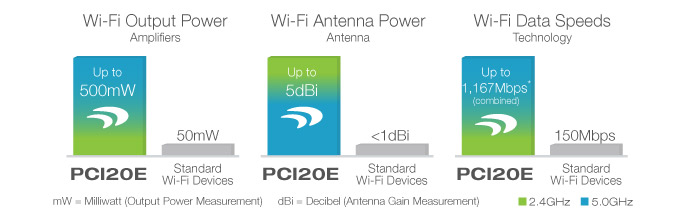

The Amped Wireless Difference
Click here to purchase an Amped Wireless High Power AC1200 Wi-Fi PCI-E Adapter PCI20E:
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
To achieve 802.11ac Wi-Fi speeds, it is necessary to connect to an 802.11ac Wi-Fi router. For optimal performance we recommend the Amped Wireless RTA15 router.
You may be experiencing your Internet speed and not your local network speed. Internet speeds are limited by the Internet bandwidth provided by your service provider. Websites such as www.speedtest.net test Internet speed and not your internal network speed. Transferring files between two local computers would give you your actual network speed.
Check that your antennas are fastened tightly to the antenna ports or antenna stand. Place the antenna stand in a location with less obstructions and angle the antennas for better performance.
Check that your PCI20E adapter was properly inserted into your PCI-E slot and that the antennas are fastened tightly.
Go to your Control Panel and uninstall the PCI20E driver/software. Check that all antivirus programs are disabled. Then reinstall the PCI20E driver/software.

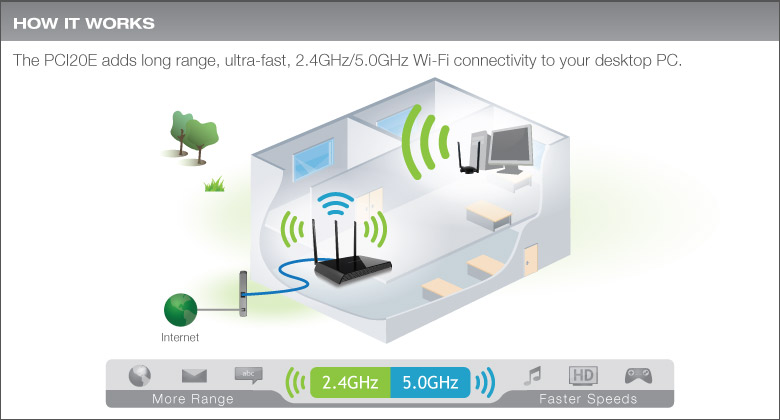

The PCI20E attaches to an available PCI-E slot on your computer and provides long range, dual band 2.4GHz and 5.0GHz 802.11ac Wi-Fi connectivity for connecting to your home or office Wi-Fi network at maximum speeds.

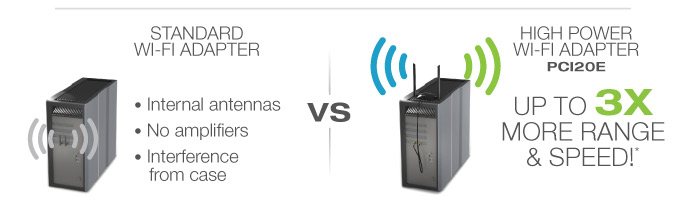

High Power, Advanced Technology Means More Wi-Fi Range

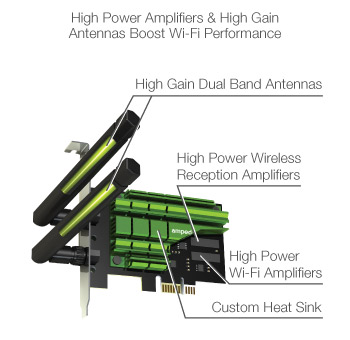

Four high power 2.4GHz and 5.0GHz amplifiers, four low noise amplifiers (increases wireless reception range), and two advanced high gain, dual band Wi-Fi antennas generate maximum range and optimal performance.
Ultra-Fast AC Wi-Fi Technology

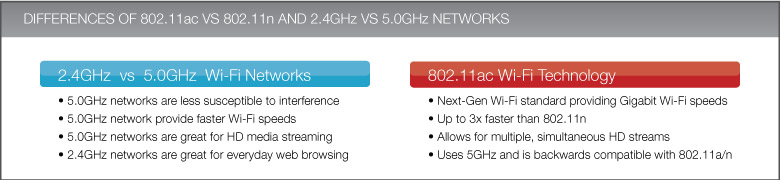

Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to three times faster than 802.11n. Great for streaming HD video and large data files. AC1200 Wi-Fi speeds provide up to 300Mbps 2.4GHz 802.11ac connections or up to 867Mbps 5.0GHz 802.11ac connections.
Simple Setup
Setup is quick and simple. Secure the PCI-E adapter into your PC, install the included software, and scan for your Wi-Fi network. That's it!
High Gain Dual Band Antennas With a Stand
The adapter is equipped with optimally tuned, advanced high gain 5dBi detachable antennas with a magnetic stand for optimal performance.
Advanced Heat Sink Keeps Things Cool
The PCI20E is built with a high dissipation heat sink to keep the adapter cool and performing at the highest level possible.
Specifications are subject to change without notice.
* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.
Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.
Add long range, ultra-fast 802.11ac Wi-Fi connectivity to your desktop PC
Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the Setup Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.
2 x 2.4GHz Amplifiers 2 x 5.0GHz Amplifiers 4 x Low Noise Amplifiers
Antennas:
High Gain Dual Band 5dBi Antennas 2 x RJ-SMA Antenna Connectors
Interface:
PCI-E
Warranty:
1 Year
Setup Requirements:
Available Wireless 2.4GHz or 5.0GHz 802.11a/b/g/n or ac network Windows® XP, Vista, 7, or 8 CD/DVD drive 100MB of free disk space One available PCI-E Slot
Package Contents:
1 x High Power AC1200 Wi-Fi PCI-E Adapter 2 x Detachable High Gain Dual Band Antennas 1 x Magnetic Antenna Stand 1 x Setup Guide 1 x CD: User’s Guide and Software Includes low profile & standard profile mounting brackets
Specifications are subject to change without notice. * Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other 802.11ac devices.
Add Long Range Wi-Fi to your Desktop PC
High Power, Advanced Technology Means More Wi-Fi Range
Ultra-Fast AC Wi-Fi Technology
Simple Setup
High Gain Dual Band Antennas With a Stand
