Titan High Power Wi-Fi Router AC1900 RTA1900

Ultimate Coverage, Maximum Streaming, More Devices

The TITAN is a powerful workhorse for the most demanding Wi-Fi networks. Built with a 1GHz Dual-Core Processor, 14 high power amplifiers, and 4 high gain antennas, the TITAN delivers superior Wi-Fi performance. It is built to provide unmatched coverage, speed, and reliability for the busiest networks with many connected devices. Blazing-fast AC1900 Wi-Fi technology provides up to 1900Mbps, making slow downloads and video buffering a thing of the past. With advanced 4 Antenna-Rx Technology, the TITAN provides stable and strong connections for all of your devices. Upgrade your network with the TITAN router to go further, move faster and do more.²

Stay Connected with 4 Antenna-Rx Technology

Ultimate Wi-Fi Range

High Power Wi-Fi for whole home or whole office coverage
14 Powerful Amplifiers & 4 Antennas

Amplify Wi-Fi to the max with advanced amplifiers and 4 antennas
Blazing-Fast AC1900 Speeds

Get more done with AC1900 Wi-Fi speeds: Up to 600Mbps 2.4GHz & 1300Mbps 5GHz²
4 Antenna-Rx Technology

The advanced 4 antenna reception boosting architecture strengthens connections
High Power Dual-Core Processor

A 1GHz Dual-Core Processor handles heavy traffic with ease, for the best Wi-Fi experience
Advanced Security Features

Adjust the coverage of your network, block websites, and utilize SPI Firewall
Beamforming Technology

Strengthen Wi-Fi connections with focused Wi-Fi streams for each connected device
Ultimate Gaming, HD & 4K

Seamlessly stream HD and 4K content to multiple devices
and eliminate gaming lag

Bandwidth Optimization

Prioritize bandwidth for specific applications, networks and devices on your network
Share Files with USB

Attach a USB drive and instantly share files at blazing-fast speeds, locally or remotely*

*USB storage device not included.

Buy the TITAN High Power AC1900 Wi-Fi Router:

Specifications are subject to change without notice.

¹ Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
²All transmission rates listed, for example 600Mbps for 2.4GHz and 1300Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1900 wireless speeds are achieved when connecting to other AC1900 capable devices.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

Details

The TITAN is a powerful workhorse for the most demanding Wi-Fi networks. Built with a 1GHz Dual-Core Processor, 14 high power amplifiers, and 4 high gain antennas, the TITAN delivers superior Wi-Fi performance. It is built to provide unmatched coverage, speed, and reliability for the busiest networks with many connected devices. Blazing-fast AC1900 Wi-Fi technology provides up to 1900Mbps, making slow downloads and video buffering a thing of the past. With advanced 4 Antenna-Rx Technology, the TITAN provides stable and strong connections for all of your devices. Upgrade your network with the TITAN router to go further, move faster and do more.

Ultimate Wi-Fi Range
High Power Wi-Fi for whole home or whole office coverage.

14 Powerful Amplifiers & 4 Antennas
Amplify Wi-Fi to the max with advanced amplifiers and 4 antennas

Blazing-Fast AC1900 Wi-Fi Speed
Get more done with AC1900 Wi-Fi speeds: Up to 600Mbps on 2.4GHz and 1300Mbps on 5GHz2

4 Antenna-Rx Technology
The advanced 4 antenna reception boosting architecture strengthens connections

High Power Dual-Core Processor
1GHz Dual-Core Processor handles heavy traffic with ease, for the best Wi-Fi experience

Bandwidth Optimization
Prioritize bandwidth for specific applications, networks and devices on your network

Ultimate Gaming, HD
Seamlessly stream HD and 4K content to multiple devices and eliminate gaming lag

Advanced Security Features
Adjust the coverage of your network, block websites and utilize SPI Firewall

Beamforming Technology
Strengthen Wi-Fi connections with focused Wi-Fi streams for each connected device

Share Files with USB 3.0
Attach a USB drive* and instantly share files at blazing-fast speeds, locally or remotely * USB Storage device not included.

TECHNICAL SPECIFICATIONS

Frequency Bands: 2.4GHz/5GHz 802.11a/b/g/n/ac
Wireless Speed: 2.4GHz 600Mbps +
5GHz 1300Mbps (simultaneous)
Processor: 1GHz Dual-Core Processor
Memory: 128MB DDR3
Amplifiers: 3 x 2.4GHz Amplifiers
3 x 5GHz Amplifiers
8 x Low Noise Amplifiers
Antennas: 4 x Detachable High Gain 5dBi Dual Band Antennas
Ports: 1 x RJ-45 10/100/1000M (WAN)
4 x RJ-45 10/100/1000M (LAN)
1 x USB 3.0 Port
1 x USB 2.0 Port

PACKAGE CONTENTS

TITAN High Power AC1900 Wi-Fi Router
4 x Detachable High Gain Dual Band Antennas
Power Adapter (100-240v)
RJ-45 Ethernet Cable
Setup Guide
CD: User’s Guide & Installation Video

SYSTEM REQUIREMENTS

Broadband Internet modem with Ethernet port
Computer with wired or wireless network adapter

FAQs

Troubleshooting

The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.

I entered setup.ampedwireless.com and it failed to open the Setup Wizard.

I entered setup.ampedwireless.com and it failed to open the Web Menu Dashboard.

I have entered setup.ampedwiress.com, but I cannot enter the Web Menu. I am prompted for a login and password, but it does not let me continue.

I am having problems with features on the Web Menu. When clicking buttons, it does not register my action.

The Basic Setup Wizard could not automatically configure my Internet connection.

I have gone through the Setup Wizard and I do not have Internet.

My Internet connection is unstable and drops intermittently.

My Internet connection is abnormally slow.

My computer is getting an IP address of 169.254.x.x and Windows says "Limited or no Connectivity".

I am only getting 3 or 4 wireless signal bars on my wireless computer and I am within 10 feet of the wireless router.

I am not getting a strong wireless connection from all distances from the wireless router.

My wireless adapter does not connect at the maximum wireless speed.

I cannot connect my Windows Vista computer to the wireless network. I enter my wireless password and I see an error.

I cannot connect my Windows XP computer to the wireless network. I enter my wireless password and I see an error.

I cannot access my USB storage device remotely.

The Router freezes or I cannot access the web when a USB storage device is connected.

Features

Ultimate Range & Wi-Fi Coverage
Add long range Wi-Fi to your entire home or office with the TITAN. High Power amplifiers, low noise amplifiers and high gain antennas provide the ultimate Wi-Fi experience with a signal that easily penetrates walls and eliminates Wi-Fi dead spots.
14 Powerful Amplifiers & 4 Antennas
The TITAN is packed with the latest high power technology. With a total of 14 advanced amplifiers (3 x 2.4GHz amplifiers, 3 x 5GHz amplifiers, 4 x 2.4GHz signal reception amplifiers, 4 x 5GHz signal reception amplifiers) and 4 high gain 5dBi antennas, it delivers up to 800mW of output power. Providing the ultimate Wi-Fi performance and coverage, it is a leader in its class.
Stable Connections with 4 Antenna-Rx Technology
The TITAN features a unique combination of 3 transmitters with 4 receivers and 4 antennas per frequency to blanket a home or office with multiple Wi-Fi streams for unparalleled reliability, performance, and range.
Unmatched AC1900 Wi-Fi for Flawless HD & 4K Streaming
Move faster than ever with unprecedented Wi-Fi speeds of up to 1900Mbps, that's 600Mbps on the 2.4GHz frequency and 1300Mbps on the 5GHz. Seamlessly stream HD and 4K content to multiple devices at once and eliminate gaming lag.²
More Bandwidth for More Devices
The TITAN combines AC1900 Wi-Fi speeds with Amped Wireless' High Power Technology to provide multiple room, blazing-fast Wi-Fi coverage. The increased bandwidth of AC1900 and 4 Antenna-Rx Technology means your entire family can stream whatever they want, whenever they want, with no lag, all at the same time.
Parental Security Features & Guest Networks
You're in control! Smart security features allow you to set the exact days and times that the networks are available, control the strength of your signal, and even block specific devices from accessing the network at all. Create up to 8 additional Wi-Fi networks for guests or conference rooms and enjoy secure connections with WPS push button configuration.
High Power Dual-Core Internet Processor
Do more now with a powerful 1GHz Dual-Core Processor that is built to handle heavy traffic with ease, for the best networking experience.
Beamforming Technology for More Reliable Wi-Fi Connections
Beamforming Technology strengthens Wi-Fi connections with focused Wi-Fi streams for each connected device. This results in fewer dropped signals for more reliable and stable connections.
Bandwidth Optimization to Prioritize Your Network Traffic
Prioritize bandwidth for specific applications, networks, and devices on your network to optimize network bandwidth for streaming devices.
Share Files Faster with USB 3.0
Includes two USB ports, one USB 3.0 and one USB 2.0. These ports are designed for attaching USB storage devices, such as an external hard drive or flash drive, to share at home or in the office with other networked computers. Shared files can also be accessed remotely, over the Internet using a FTP client.
Simple Setup
The Basic Setup Wizard walks you through the simple setup process and automatically configures the settings of your Internet provider. Taking only minutes, your new High Power Wi-Fi network will be up and running in no time.

Specifications are subject to change without notice.

¹ Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
²All transmission rates listed, for example 600Mbps for 2.4GHz and 1300Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1900 wireless speeds are achieved when connecting to other AC1900 capable devices.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance. Qualcomm is a trademark of QUALCOMM Incorporated, registered in the United States and other countries. Qualcomm MU|EFX and Qualcomm Internet Processor (IPQ) are products of Qualcomm Atheros, Inc.

Description

More Coverage & Performance for More Devices

Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.

Downloads

Items

Notes

Date

Firmware	Download and Unzip. View Read Me.txt	v1.45
	Recent Updates Added IPv6 Support Fixed file size display error that occurred for some USB storage devices Increase connection stability Fixed general setup wizard issues
	Important: Before upgrading firmware, always save your current settings from the Save/Reload Settings page. To access from the web menu: More Settings > Management > Save/Reload Settings > Save Settings to File After the firmware updates, load your saved settings to keep your existing configurations.

Specifications

Wireless Standard:	802.11a/b/g/n/ac
Frequency Band:	2.4/5GHz Simultaneous
Wireless Speed:	2.4GHz: 600Mbps 5GHz: 1300Mbps
Amplifiers:	3 x 2.4GHz Amplifiers 3 x 5GHz Amplifiers 8 x Low Noise Amplifiers
Processor:	1GHz Dual-Core Processor
Memory:	128MB DDR3
Wireless Coverage Control:	15% - 100% Output Power (Individually adjustable for 2.4GHz and 5GHz networks)
Antennas:	4 x Detachable High Gain 5dBi Dual Band Antennas
Ports:	1 x RJ-45 10/100/1000M WAN Port (Modem Port) 4 x RJ-45 10/100/1000M LAN Ports (Local Ports) 1 x USB 3.0 Port for USB Storage 1 x USB 2.0 Port for USB Storage
Power Adapter Rating:	Switching Adapter (Input: 100-240v, Output: 12v, 2.5A)
Mounting:	Wall or Desktop
Warranty:	1 Year
Setup Requirements:	Broadband Internet modem with Ethernet Port Computer with wired or wireless network adapter
Package Contents:	*TITAN* High Power AC1900 Wi-Fi Router 4 x Detachable High Gain Dual Band Antennas Power Adapter (100-240v) RJ-45 Ethernet Cable Setup Guide CD: User's Guide & Installation Video

Video

Documentation

Items

Date

	Setup Guide (English)	8/19/2015
	Setup Guide (Spanish)	8/19/2015
	Setup Guide (French)	8/19/2015
	User's Guide	8/19/2015
	Datasheet	8/19/2015

Gallery

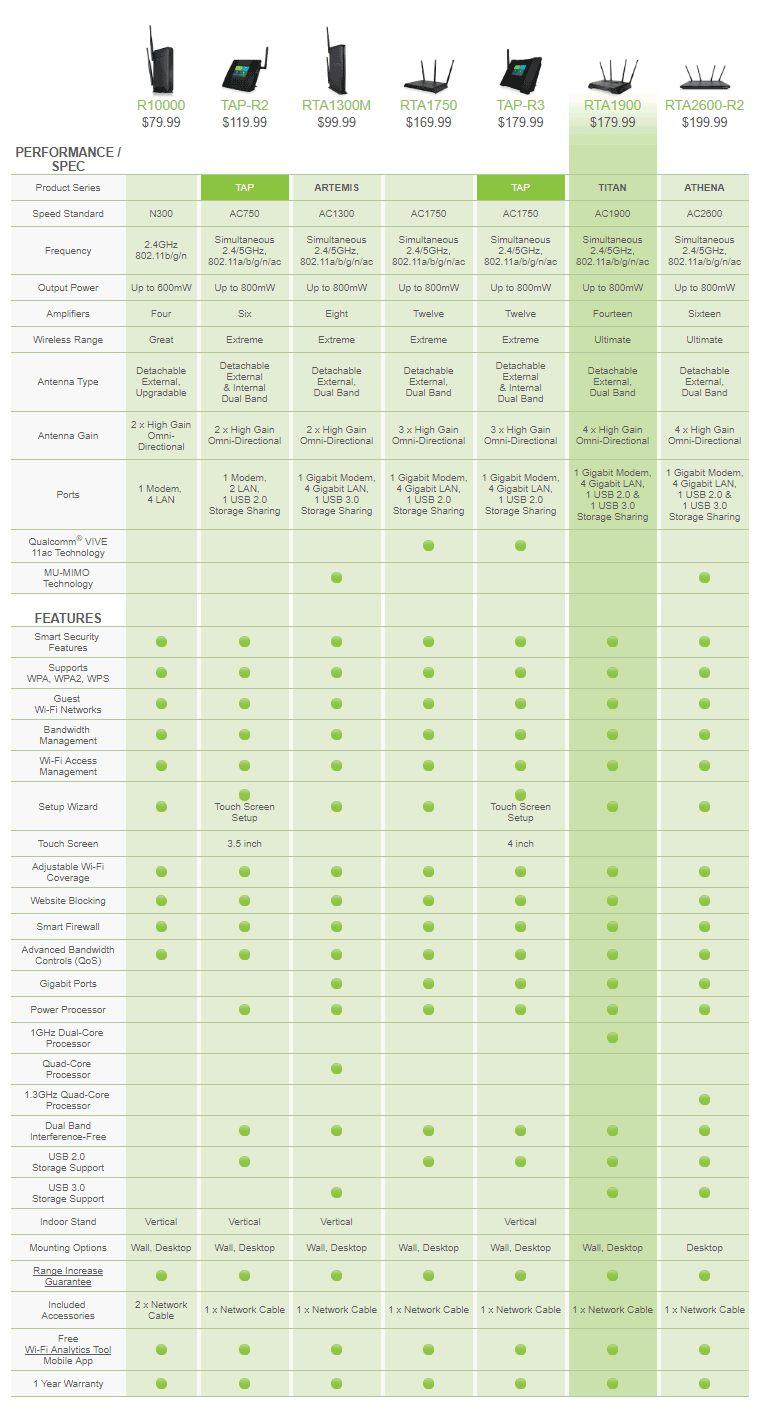

Compare

Specifications are subject to change without notice.

¹ Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

² All transmission rates listed, for example 399Mbps for 2.4GHz and 866Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC1300 wireless speeds are achieved when connecting to other AC1300 capable devices.

³ For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network.
