Product Support
Amped Wireless High Power Plug-In AC1200 Wi-Fi Range Extender REC22A

Amped Wireless High Power Plug-In AC1200 Wi-Fi Range Extender REC22A

REC22A

Special Price $39.99

Regular Price: $99.99

Extend the range of any Wi-Fi network by up to
10,000 sq ft with ultra-fast speeds*

  • Experience more Wi-Fi throughout your large home, backyard, and office
  • Next generation, ultra-fast AC1200 Wi-Fi speeds provide fast HD streaming and lag-free gaming
  • Elegant and plug-in design installs discreetly in any room
  • Eliminate Wi-Fi dead spots and penetrate walls with 8 Powerful amplifiers
  • Features BoostBand™ Technology to increase overall speed by streamlining Wi-Fi traffic
  • Connect a smart TV, PC or game console using the gigabit wired port
  • Features a Signal Strength LED for finding the optimal installation location
  • Universal: Works with all brands of standard routers and service provider gateways*

Extend the range of any Wi-Fi network at ultra-fast speeds*

Browse the selections below to view support materials and
troubleshooting tips. FAQs provide you with answers to frequently
asked questions. The Download section provides you with firmware
upgrades or device drivers and other related software. To view the
User's Guide for your product check out the Documentation section.
If you are having problems finding what you need, contact us.

Description

The REC22A expands the range of any standard 802.11a/b/g/n/ac Wi-Fi network by repeating the signal (2.4GHz and 5GHz) from a Wi-Fi router and redistributing it in a new, extended location. The REC22A is equipped with a total of eight amplifiers, including four 2.4/5GHz amplifiers and four low noise amplifiers. The amplifiers combined with a high gain external antenna and an internal high gain antenna provide up to 10,000 sq ft of additional Wi-Fi coverage. The Range Extender features AC1200 Wi-Fi speeds to provide enough bandwidth for the most demanding networks. It is built with one gigabit wired port for connecting and bridging an additional network device, such as a PC or TV, to your Wi-Fi network. The REC22A works with all brands of standard single or dual band Wi-Fi routers and service provider gateways. Unleash your iPads, tablets and smartphones with the most powerful, fastest, plug-in, universal Wi-Fi range extender available.

Long Range Wi-Fi
Extend the range of any Wi-Fi router by up to 10,000 sq ft*

Eliminate Wi-Fi Dead Spots
Achieve maximum range with 8 high power amplifiers and a high gain antenna

Ultra-Fast AC1200 Wi-Fi
Supports next-gen AC1200 Wi-Fi for 300Mbps on 2.4GHz and 867Mbps on 5GHz

Simultaneous Dual Band Wi-Fi
Repeat both 2.4GHz and 5GHz signals simultaneously for maximum bandwidth

Guest Networks and User Access
Create up to 8 networks for guests and restrict access to specific users

BoostBand™ Technology
Streamline Wi-Fi traffic and increase speeds by up to 2X*

Wi-Fi Coverage Control
Adjust the distance of your wireless network

AIRPLAY®, AIRPRINT™ & Home Sharing
Works with all Apple networking features

Gigabit Network Bridge
Connect more wired devices like smart TVs and gaming consoles at gigabit speeds


TECHNICAL SPECIFICATIONS

  • Wireless Standard: 802.11a/b/g/n/ac
  • Frequency Band: 2.4GHz, 5GHz
  • Wireless Speed: AC1200
  • Security: WEP, WPA, WPA2, WPA Mixed, WPS
  • Amplifiers: 2 x 2.4GHz Amplifiers, 2 x 5GHz Amplifiers, 4 x Low Noise Amplifiers
  • Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS
  • Antennas: 1 x Detachable High Gain Dual Band Antenna, 1 x Internal High Gain Dual Band Awareness
  • Port: 5 x RJ-45 Gigabit Port


PACKAGE CONTENTS

  • High Power AC1200 Wi-Fi Range Extender
  • Detachable High Gain Dual Band Antennas
  • Setup Guide
  • CD: User’s Guide & Installation Video


SYSTEM REQUIREMENTS

  • Wireless 802.11a/b/g/n 2.4GHz or 5.0GHz Network
  • Computer, Tablet or Smartphone with Wi-Fi access and a web browser
Overview



The Amped Wireless High Power AC1200 Wi-Fi Range Extender expands the range of any standard 802.11a/b/g/n/ac Wi-Fi network by repeating the signal (2.4GHz and 5GHz) from a Wi-Fi router and redistributing it in a new "extended" location at ultra-fast speeds. The REC22A is equipped with a total of eight amplifiers, four 2.4/5GHz amplifiers, four low noise amplifiers, a high gain external dual band antenna and an internal high gain dual band antenna to provide up to 10,000 sq ft of blazing-fast Wi-Fi coverage. The Range Extender features ultra-fast AC1200 Wi-Fi speeds to provide enough bandwidth for demanding networks with multiple connected devices and simultaneous HD streams. It includes a gigabit wired port for connecting and bridging an additional network device, such as a PC or TV, to your Wi-Fi network. The AC1200 Wi-Fi Range Extender works with all brands of standard single band or dual band Wi-Fi routers and service provider gateways. Unleash your iPads, tablets and smartphones with the most powerful, fastest, plug-in universal Wi-Fi range extender available.

How It Works

The REC22A expands the range of any standard Wi-Fi router by repeating the signal (2.4GHz and/or 5GHz) and redistributing it in a new, extended location.

How It Works


Extend Wi-Fi Coverage
Enjoy your Laptops, Tablets and Smartphones
Stream HD and 4k Media


Key Features

  • Up to 10,000 Sq Ft of Wi-Fi Coverage
    Extend the range of any single or dual band Wi-Fi router, covering more of your home or office.
  • Small & Packed with Power
    Eight powerful amplifiers boost Wi-Fi coverage to eliminate Wi-Fi dead spots and penetrate walls.
  • Ultra-Fast AC1200 Wi-Fi Speeds and Bandwidth
    Move faster than ever with AC1200 speeds: 2.4GHz 300Mbps + 5GHz 867Mbps. Enough bandwidth for the most demanding networks with a large number of connected devices.
  • Universal Wi-Fi Range Extender
    Works with any standard 802.11a/b/g/n/ac single or dual band Wi-Fi router or network.*
  • Gigabit Network Bridge (1-Wired Port)
    Connect an additional PC, A/V device, server, or printer to your network at gigabit speeds.
  • Simultaneous Dual Band Coverage
    Extends the range of both 2.4GHz and 5GHz Wi-Fi signals at the same time for maximum bandwidth.
  • Create Guest Networks
    Add up to eight additional networks for guests and conference rooms.
  • AirPlay®, AirPrint™, & Home Sharing
    Works with all Apple networking features
    and supported devices.
  • User Access Control & Schedules
    Restrict network access to specific users
    and set schedules for when your extended
    network is on or off.




Simple Setup with PC, Tablet or Smartphone

  • Connect your tablet, smartphone, or PC to the Range Extender
  • Access the Setup Menu
  • Scan for and select your network
  • Check the Signal Strength LED indicator for instant feedback on your Home Network connection strength.


    Installation Video Step-by-Step Installation Video Included

Simple Setup with PC, Tablet or Smartphone



The Amped Wireless Difference

Up to 10,000 sq ft*



AC1200 Wi-Fi Delivers up to 6X More Speed Than N300



12 High Power Amplifiers & 3 High Gain Antennas Boost Wi-Fi Performance


BoostBand Technology

BoostBand Technology



Purchase the REC22A
High Power AC1200 Plug-In Wi-Fi Range Extender:
High Power AC1200 Plug-In Wi-Fi Range Extender (REC22A)



Specifications are subject to change without notice.

* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other AC1200 capable Wi-Fi devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.

May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


Features
  • Long Range Wi-Fi  (Up to 10,000 sq ft) Long Range Wi-Fi (Up to 10,000 sq ft)
    Expand the range of your existing home or office single band or dual band wireless network by repeating the existing Wi-Fi signal. Four 2.4/5GHz amplifiers, four low noise amplifiers, and two high gain dual band antennas (one internal, one external) provide unprecedented Wi-Fi power and up to 10,000 sq ft of Wi-Fi coverage.
  • Blazing-Fast AC1200 Wi-Fi Speeds Ultra-Fast AC1200 Wi-Fi Speeds
    Next generation 802.11ac Wi-Fi technology provides Wi-Fi speeds up to four times faster than 802.11n. Making it an ideal extender for buffer and lag-free HD video streaming onto multiple devices at once. AC1200 Wi-Fi speeds provide up to 300Mbps 2.4GHz connections and up to 867Mbps 5GHz connections, simultaneously.
  • Penetrate Walls & Eliminate Dead Spots Penetrate Walls & Eliminate Dead Spots
    Bring more range to your network with High Power Amplifiers and High Gain Antennas that provide powerful Wi-Fi coverage for hard-to-reach areas in your home or office.
  • BoostBand™ Technology Maximizes Speed BoostBand™ Technology Maximizes Speed
    Features exclusive technology that increases overall speed and performance by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and the Range Extender. Stream HD media without buffering, transfer large data files faster and play your games without lag.
  • Network Bridging with Included Gigabit Wired Port Network Bridging with Included Gigabit Wired Port
    Connect a wired PC, server, printer, or A/V device, such as a smart television, Blu-ray™ player, or game console at gigabit speeds with the included wired network port.
  • Smart Security Features Smart Security Features
    You're in control! Smart security features allow you to restrict access to specific users, set a daily time schedule for when the network is available and control how far your extended wireless network coverage reaches through wireless output power adjustments. The Range Extender also supports secure push button setup for WPS enabled devices.
  • Elegant, Plug-In Design Elegant, Plug-In Design
    With the small design of the Range Extender you can discreetly place it in any room in your home or office without taking up shelf or wall space.
  • AirPlay<sup>®</sup>, AirPrint™, & Home Sharing AirPlay®, AirPrint™, & Home Sharing
    Works with all Apple networking features for use with your iPads, iPhones, AirPlay speakers, AirPrint printers and more.
  • Universal Compatibility Universal Compatibility
    The Range Extender works with all brands of standard single band (2.4GHz) or dual band (2.4GHz and 5GHz) wireless routers and service provider gateways. The REC22A simultaneously extends both 2.4 and 5GHz networks to deliver maximum wireless speed and bandwidth.*
  • Create Guest Networks Create Guest Networks
    Add up to eight additional wireless networks for other rooms or offices. Each network can be customized with unique passwords and bandwidth restrictions for guests.
  • Simple Setup Simple Setup
    The Setup Wizard connects the Range Extender to your home or office Wi-Fi network in minutes. Simply connect your PC, Smartphone, or tablet to the Range Extender's Wi-Fi network, enter the setup URL, scan for your wireless network, select it and you're done!
  • Easy Optimal Placement: Signal Strength LED Easy Optimal Placement: Signal Strength LED
    The Signal Strength LED gives you instant feedback on the connection between the Range Extender and your Home Network. Green, yellow and red lights atop the device convey whether the Extender is in the optimal, moderately optimal or poor installation location.




Connectors & Ports

Connectors and PortsWired Devices


Specifications are subject to change without notice.

* Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. AC1200 wireless signal speeds achieved when connecting to other AC1200 capable Wi-Fi devices. Output power specifications are based on the maximum possible radio output power plus antenna gain.

May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

AirPlay, AirPrint, Home Sharing are either registered trademarks or trademarks of Apple Inc. Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


Video
Watch Video

Specifications
Wireless Standard: 802.11a/b/g/n/ac
Frequency Band: 2.4GHz, 5GHz Simultaneous
Wireless Speed:

2.4GHz: 300Mbps (Rx), 300Mbps (Tx)
5GHz: 867Mbps (Rx), 867Mbps (Tx)
Amplifiers:


2 x 2.4GHz Amplifiers
2 x 5GHz Amplifiers
4 x Low Noise Amplifiers
Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS
Wireless Access Scheduling: Specific day and time
Wireless Coverage Control:

15% - 100% Output Power
(Individually adjustable for 2.4GHz and 5GHz networks)
Antennas:

1 x Detachable High Gain Dual Band Antenna
1 x Internal High Gain Dual Band Antenna
Port:
1 x RJ-45 10/100/1000M LAN Port
Power Rating: 100-120Vac 60Hz
Mounting: Plug-in
Warranty: 1 Year
Setup Requirements:

Wireless 802.11a/b/g/n or ac 2.4GHz or 5GHz Network
Computer, tablet or smartphone with a web browser
Package Contents:

High Power AC1200 Plug-In Wi-Fi Range Extender
Detachable High Gain Dual Band Antenna
Setup Guide
CD: User's Guide & Installation Video

Gallery

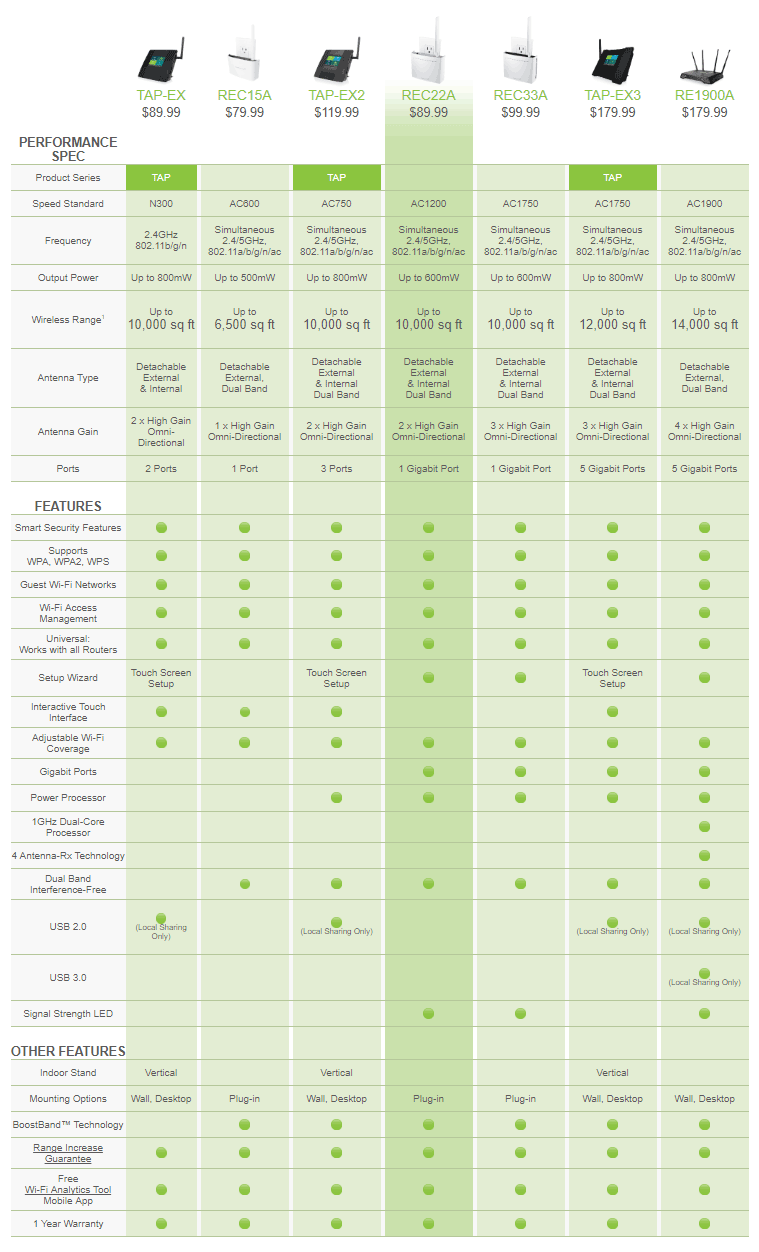

Compare

Specifications are subject to change without notice.

1 Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

2 All transmission rates listed are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the unit. 802.11ac wireless speeds are achieved when connecting to other 802.11ac capable devices.

3 May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.


FAQs
Troubleshooting

The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.

Videos
Watch Video

Documentation
Items
Date
Setup Guide Setup Guide (English) 4/10/2015
Setup Guide

Setup Guide (Spanish)

4/10/2015
Setup Guide

Setup Guide (French)

4/10/2015
User's Guide User's Guide 4/10/2015
Datasheet Datasheet 4/10/2015

Downloads
Items
Notes
Date
Firmware Firmware Download and unzip. View Read Me.txt 4/12/2016
v1.19

Recent Updates
  • Improved connection stability to Home Network.



Important:
Before upgrading firmware, always save your current settings from the Save/Reload Settings page.

To access from the web menu:
More Settings > Management > Save/Reload Settings > Save Settings to File
After the firmware updates, load your saved settings to keep your existing configurations.
