ATHENA-AP HIGH POWERTM AC2600 WI-FI® ACCESS POINT

Extend the Range of any Wi-Fi Router by up to 15,000 sq ft

The ATHENA-AP is the ultimate Wi-Fi Access Point for the multi-device household/office. It adds reliable, long range, ultra-fast Wi-Fi coverage to any existing Wi-Fi network including networks with an existing router provided by the Internet service provider. Built with a powerful 1.3GHz Quad-Core Processor, 16 high power amplifiers, and 4 high gain antennas, the ATHENA-AP delivers unrivaled Wi-Fi performance. It is designed to provide unmatched range, speed, and reliability for the most demanding networks with many connected devices. Incredibly fast AC2600 Wi-Fi technology provides up to 2.53Gbps, making lag and buffering a thing of the past for everyone. The ATHENA-AP also features cutting edge MU-MIMO technology that enables multiple devices to receive data at once, granting uninterrupted streaming for all. Get rid of your Wi-Fi dead zones, stream movies and shows with ease, and be free with your mobile devices. The ultimate home or office Wi-Fi experience is here, with the ATHENA-AP.

Maximum Wi-Fi Coverage

High Power Wi-Fi for whole home or whole office coverage
16 Powerful Amplifiers & 4 Antennas

Amplify Wi-Fi to the max with advanced amplifiers and 4 high gain antennas
Advanced Multi-User MIMO

Deliver data to multiple devices at once for a boost in performance and up to 4X more speed²
Unmatched AC2600 Wi-Fi Speeds

Move faster than ever with speeds up to 2.53Gbps: 2.4GHz 800Mbps + 5GHz 1733Mbps³
4 Antenna Technology

The advanced 4 antenna, 4 stream architecture strengthens connections & covers more ground
High Power Quad-Core Processor

A 1.3GHz quad-core processor handles heavy traffic with ease, for the best Wi-Fi experience
Wi-Fi Coverage Control

Adjust the distance of your extended Wi-Fi network
for more control
Beamforming Technology

Strengthen Wi-Fi connections with focused
Wi-Fi streams for each connected device

Ultimate Gaming, HD & 4K

Seamlessly stream HD and 4K content to multiple devices and eliminate gaming lag
Gigabit Network Ports

Includes a 4-port gigabit switch for adding additional wired devices
Share Files with USB 3.0

Attach a USB drive and instantly share files, locally or remotely,
at faster speeds than ever before*

*USB storage device not included.

Buy the ATHENA-AP High Power AC2600 Wi-Fi Access Point:

Top

Specifications are subject to change without notice.

¹ Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

² All transmission rates listed, for example 800Mbps for 2.4GHz and 1733Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC2600 wireless speeds are achieved when connecting to other AC2600 capable devices.

³ May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

⁴ For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

Details

The ATHENA-AP is the ultimate Wi-Fi Access Point for the multi-device household/office. It adds reliable, long range, ultra-fast Wi-Fi coverage to any existing Wi-Fi network including networks with an existing router provided by the Internet service provider. Built with a powerful 1.3GHz Quad-Core Processor, 16 high power amplifiers, and 4 high gain antennas, the ATHENA-AP delivers unrivaled Wi-Fi performance. It is designed to provide unmatched range, speed, and reliability for the most demanding networks with many connected devices. Incredibly fast AC2600 Wi-Fi technology provides up to 2.53Gbps, making lag and buffering a thing of the past for everyone. The ATHENA-AP also features cutting edge MU-MIMO technology that enables multiple devices to receive data at once, granting uninterrupted streaming for all. Get rid of your Wi-Fi dead zones, stream movies and shows with ease, and be free with your mobile devices. The ultimate home or office Wi-Fi experience is here, with the ATHENA-AP.

Maximum Wi-Fi Coverage
High Power Wi-Fi for whole home or whole office coverage

16 Powerful Amplifiers & 4 Antennas
Amplify Wi-Fi to the max with advanced amplifiers and 4 antennas

Advanced Multi-User MIMO
Deliver data to multiple devices at once for a boost in performance and up to 4X more speed2

Unmatched AC2600 Wi-Fi Speeds
Move faster than ever with speeds up to 2.53Gbps: 2.4GHz 800Mbps + 5GHz 1733Mbps

4 Antenna Technology
The advanced 4 antenna, 4 stream architecture strengthens connections & covers more ground

High Power Quad-Core Processor
A 1.3GHz quad-core processor handles heavy traffic with ease, for the best Wi-Fi experience

Beamforming Technology
Strengthen Wi-Fi connections with focused Wi-Fi streams for each connected device

Ultimate Gaming, HD & 4K
Seamlessly stream HD and 4K content to multiple devices and eliminate gaming lag

Wi-Fi Coverage Control
Adjust the distance of your extended Wi-Fi network for more control

Gigabit Network Ports
Includes a 4-port gigabit switch for adding additional wired devices

Share Files with USB 3.0
Attach a USB drive* and instantly share files at blazing-fast speeds, locally or remotely * USB Storage device not included.

TECHNICAL SPECIFICATIONS

Frequency Bands: 2.4GHz/5GHz 802.11a/b/g/n/ac
Wireless Speed: 2.4GHz 800Mbps + 5GHz 1733Mbps (simultaneous)
Processor: High Power 1.3GHz Quad-Core Processor
Memory: 128MB, 256 DDR3
Amplifiers:4 x 2.4GHz Amplifiers
Amplifiers:4 x 5GHz Amplifiers
Amplifiers:8 x Low Noise Amplifiers
Antennas: 4 x Detachable High Gain 5dBi Dual Band Antennas
Ports: 1 x RJ-45 10/100/1000M (WAN)
Ports: 4 x RJ-45 10/100/1000M (LAN)
Ports: 1 x USB 3.0 Port
Ports: 1 x USB 2.0 Port

PACKAGE CONTENTS

ATHENA-AP High Power AC2600 Wi-Fi Access Point with MU-MIMO
4 x Detachable High Gain Dual Band Antennas
Power Adapter (100-240v)
Setup Guide
CD: User’s Guide

SYSTEM REQUIREMENTS

Router or network switch with an available network (LAN) port
Computer with wired or wireless network adapter

FAQs

Troubleshooting

The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc.

I entered setup.ampedwireless.com and it failed to open the web menu.

I do not have Internet access when connecting to the Access Point.

My Access Point was working fine previously, but now I can no longer access the Internet through the Access Point.

I can no longer access the web menu or the Access Point no longer responds.

The connection through the Access Point seem slow. File transfers take a long time to transfer.

I am only getting 3 or 4 wireless signal bars on my wireless computer and I am within 10 feet of the Access Point.

The range from the Access Point seems low.

My wireless adapter does not connect at the maximum wireless speed.

The Access Point freezes or I cannot access the web when a USB storage device is connected.

My Wireless Access Schedule is being erratic and not working at the correct times.

Wi-Fi Protected Setup (WPS) is not working. Push button configuration does not detect the connection.

Features

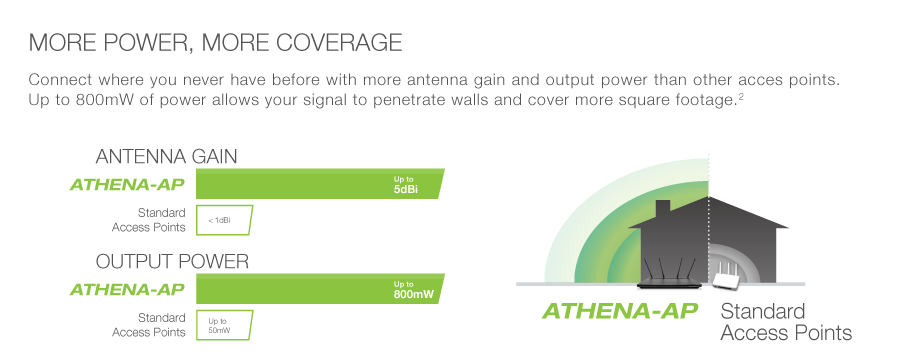

Ultimate Range & Wi-Fi Coverage
Add long range Wi-Fi to your entire home or office with the ATHENA-AP. High Power amplifiers, low noise amplifiers and high gain antennas provide the ultimate Wi-Fi experience with a signal that easily penetrates walls and eliminates Wi-Fi dead spots.
16 Powerful Amplifiers & 4 Antennas
The ATHENA-AP is packed with the latest high power technology. With a total of 16 advanced amplifiers (4 x 2.4GHz amplifiers, 4 x 5GHz amplifiers, 4 x 2.4GHz signal reception amplifiers, 4 x 5GHz signal reception amplifiers) and 4 high gain 5dBi antennas, it delivers up to 800mW of output power. Providing the ultimate Wi-Fi performance and coverage, it is the leader in its class.¹

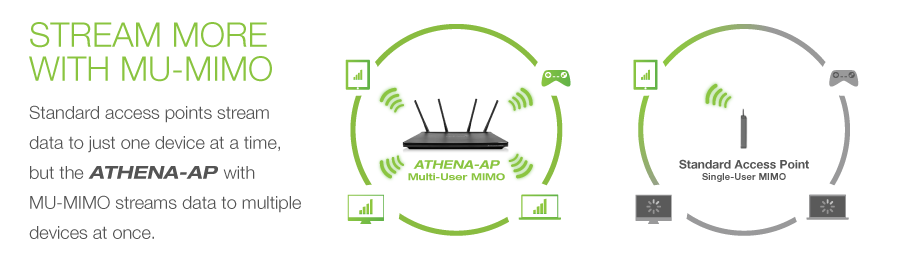

Multi-User MIMO means More Streaming for Everyone
Standard range extenders send data to one device at a time. The ATHENA-AP with MU-MIMO technology delivers up to 3X the speed by serving data to multiple devices at once for uninterrupted and blazing-fast movie streaming, gaming and downloading for everyone at the same time.⁴
Stable Connections with 4 Antenna Technology
The ATHENA-AP features a unique combination of 4 transmitters with 4 receivers and 4 antennas per frequency to blanket a home or office with multiple Wi-Fi streams for unparalleled reliability, performance, and range.

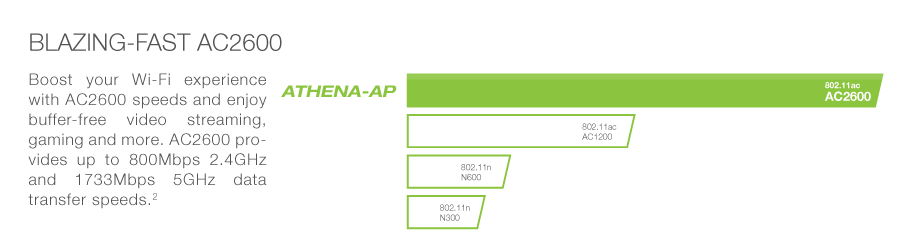

Unmatched AC2600 Wi-Fi for Flawless HD & 4K Streaming
Move faster than ever with unprecedented Wi-Fi speeds of up to 2.53Gbps, that's 800Mbps on the 2.4GHz frequency and 1733Mbps on the 5GHz. Seamlessly stream HD and 4K content to multiple devices at once and eliminate gaming lag.²
More Bandwidth for More Devices
The ATHENA-AP combines AC2600 Wi-Fi speeds with Amped Wireless' High Power Technology to provide multiple room, incredibly fast Wi-Fi coverage. The increased bandwidth of AC2600 and 4 Antenna Technology means your entire family can stream whatever they want, whenever they want, with no lag, all at the same time.

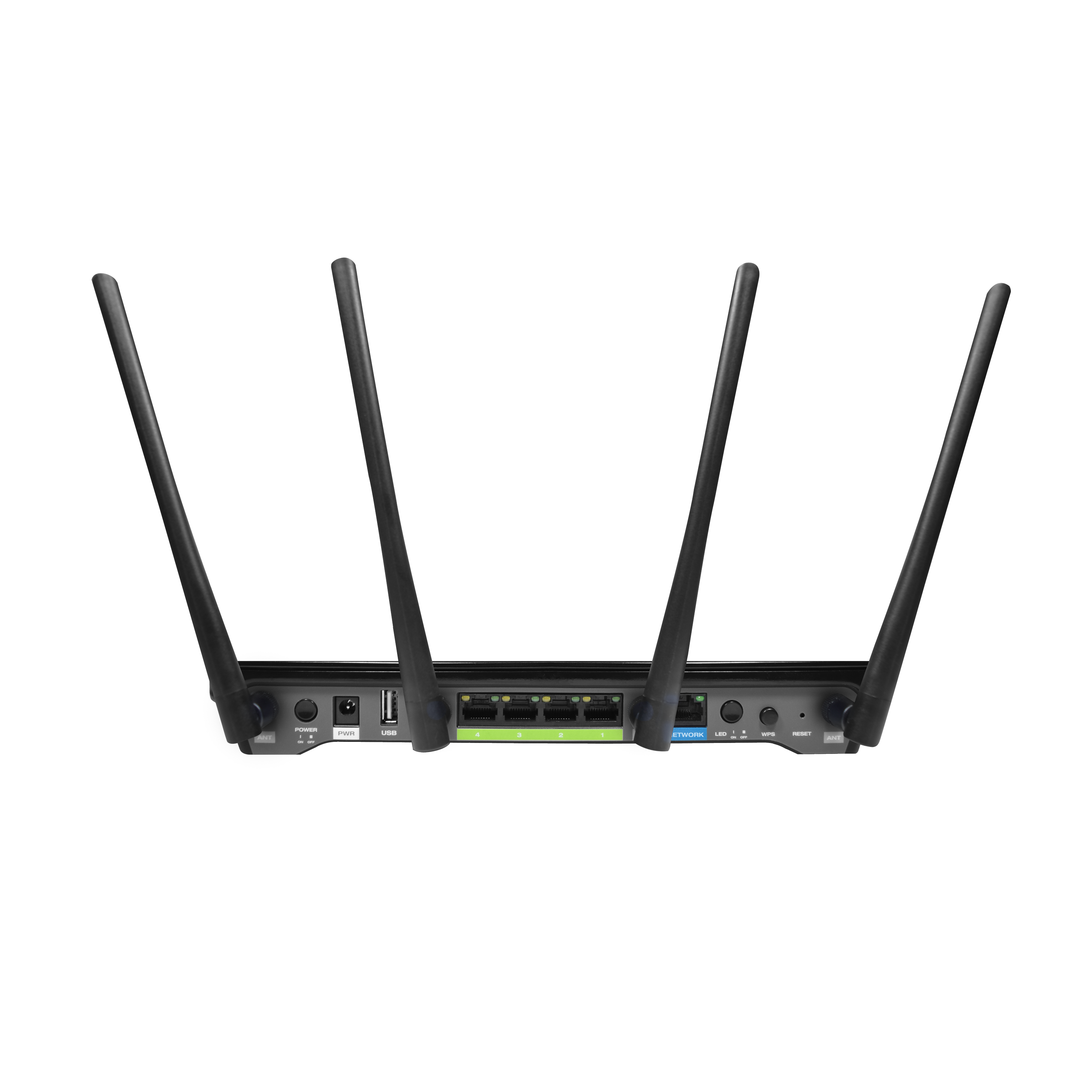

Network Bridging with 4 Gigabit Wired Ports
Connect wired PCs, servers, printers, or A/V device, such as smart TVs, Blu-ray™ players, or gaming consoles at gigabit speeds with the four built-in wired network ports.
High Power Quad-Core Internet Processor
Do more now with a powerful 1.3GHz Quad-Core Processor that is built to handle heavy traffic with ease, for the best networking experience.
Universal Compatibility
The Access Point works with all brands and standards of single (2.4GHz) or dual band (2.4GHz/5GHz) wireless routers, powerlines or network switches.
Create Guest Networks
Add up to eight additional wireless networks for other rooms or offices. Each network can be customized with unique passwords and bandwidth restrictions for guests.

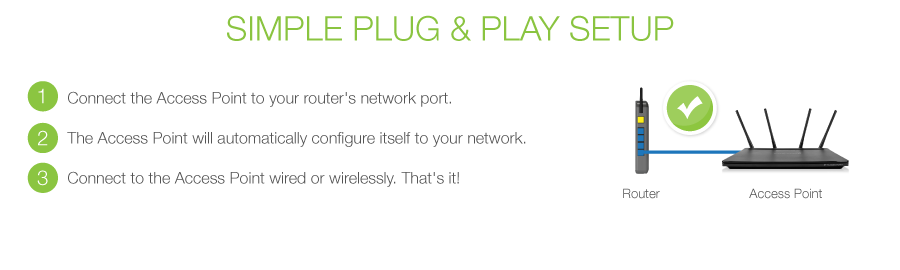

Simple Plug & Play Setup
Configuring the Access Point is easy. You simply plug the ATHENA-AP into your router or network switch and the Access Point will automatically configure itself to your network. That's all it takes to get your High Power Wi-Fi Network up and running.

Specifications are subject to change without notice.

¹ Range specifications are based on performance test results. Actual performance may vary due to differences in operating environments, building materials and wireless obstructions. Performance may increase or decrease over the stated specification. Wireless coverage claims are used only as a reference and are not guaranteed as each wireless network is uniquely different. Maximum wireless signal rate derived from IEEE 802.11 standard specifications. Actual data throughput may vary as a result of network conditions and environmental factors. Output power specifications are based on the maximum possible radio output power plus antenna gain. May not work with non-standard Wi-Fi devices such as those with proprietary software or drivers. Supports all Wi-Fi standards that are compatible or backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.

² All transmission rates listed, for example 800Mbps for 2.4GHz and 1733Mbps for 5GHz, are the physical data rates. Actual data throughput will be lower and may depend on external factors as well as the combination of devices connected to the router. AC2600 wireless speeds are achieved when connecting to other AC2600 capable devices.

³ May not work with non-standard Wi-Fi routers or routers with altered firmware or proprietary firmware, such as those from third party sources or some Internet service providers. May not work with routers that do not comply with IEEE or Wi-Fi standards.

⁴ For MU-MIMO to work, additional MU-MIMO capable devices must be connected to the network.

Wi-Fi, Wi-Fi Protected Setup, and WPA2 are either registered trademarks or trademarks of the Wi-Fi Alliance.

Description

Instantly Add Maximum Wi-Fi Coverage & Performance for All of Your Devices

Browse the selections below to view support materials and troubleshooting tips. FAQs provide you with answers to frequently asked questions. The Download section provides you with firmware upgrades or device drivers and other related software. To view the User's Guide for your product check out the Documentation section. If you are having problems finding what you need, contact us.

Downloads

Items

Notes

Date

Firmware	Download and Unzip. View Read Me.txt	10/14/2016 v1.01.11

	Important: Before upgrading firmware, always save your current settings from the Save/Reload Settings page. To access from the web menu: More Settings > Management > Save/Reload Settings > Save Settings to File After the firmware updates, load your saved settings to keep your existing configurations.

Specifications

Wireless Standard:	802.11a/b/g/n/ac
Frequency Band:	2.4/5GHz Simultaneous
Wireless Speed:	2.4GHz: 800Mbps (Rx), 800Mbps (Tx) 5GHz: 1733Mbps (Rx), 1733Mbps (Tx)
Amplifiers:	4 x 2.4GHz Amplifiers 4 x 5GHz Amplifiers 8 x Low Noise Amplifiers
Processor:	1.3GHz Quad-Core Processor
Memory:	128MB Flash, 256MB DDR3
Wireless Coverage Control:	15% - 100% Output Power (Individually adjustable for 2.4GHz and 5GHz networks)
Antennas:	4 x Detachable High Gain 5dBi Dual Band Antennas

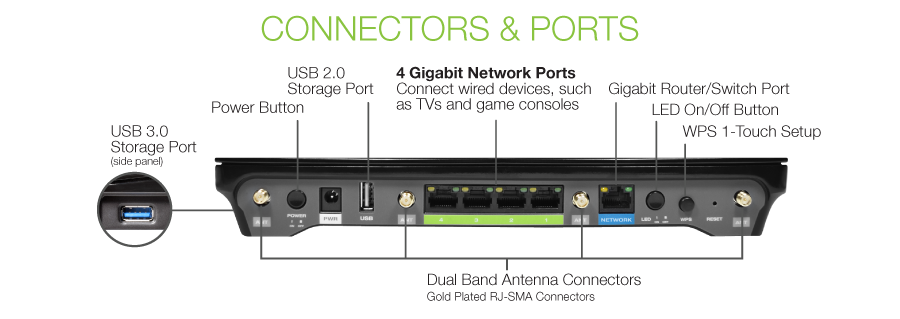

Ports:	1 x RJ-45 10/100/1000M (Network) 4 x RJ-45 10/100/1000M (LAN) 1 x USB 2.0 Port for USB Storage 1 x USB 3.0 Port for USB Storage
Power Adapter Rating:	Switching Adapter (Input: 100-240v, Output: 12v, 3A)
Mounting:	Wall or Desktop
Warranty:	1 Year
Setup Requirements:	A router or network switch with an available network (LAN) port Computer with wired or wireless network adapter
Package Contents:	*ATHENA-AP* High Power AC2600 Wi-Fi Access Point with MU-MIMO 4 x Detachable High Gain Dual Band Antennas Power Adapter (100-240v) RJ-45 Ethernet Cable Setup Guide

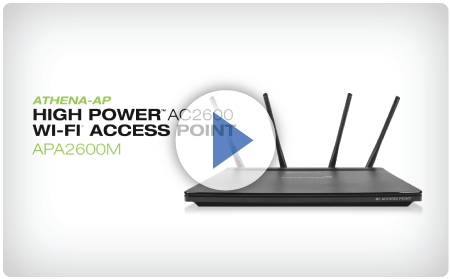

Video

Not Available

Documentation

Items

Date

	Setup Guide (English)	11/16/2016
	Setup Guide (Spanish)	11/16/2016
	Setup Guide (French)	11/16/2016
	User's Guide	11/16/2016
	Datasheet	11/16/2016

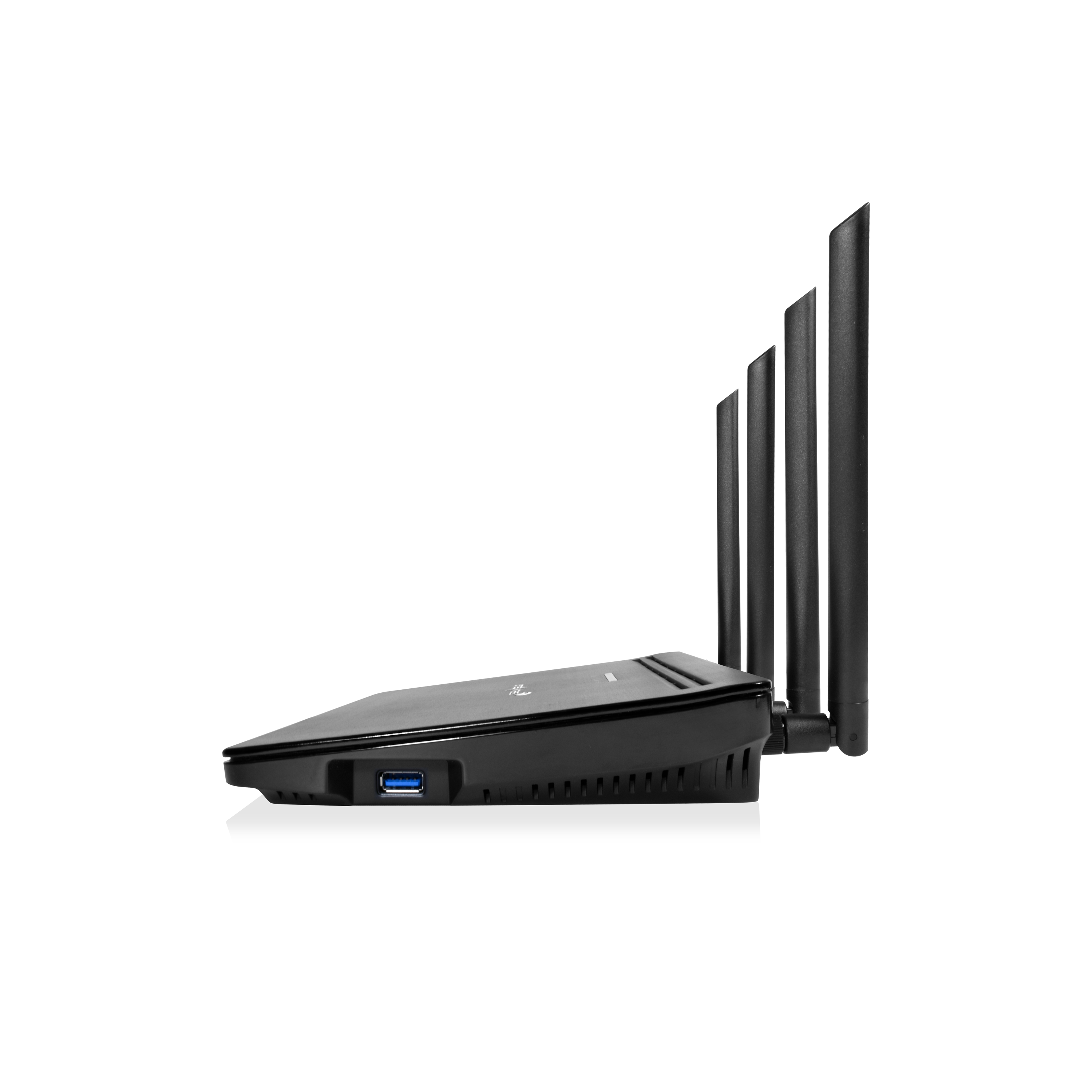

Gallery
